Machine weight：1540 kg
Bucket capacity：0.29m³
Rated power：9/3150+4×2/3500kW/rpm
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.Electric drive control intelligent mode
2.Global first wheel side motor driving technology
3.Global first wheel side AUTO-HOLD technology
4.Integrated chassis
5.Electric drive control intelligent mode
6.Battery life increased by 32%

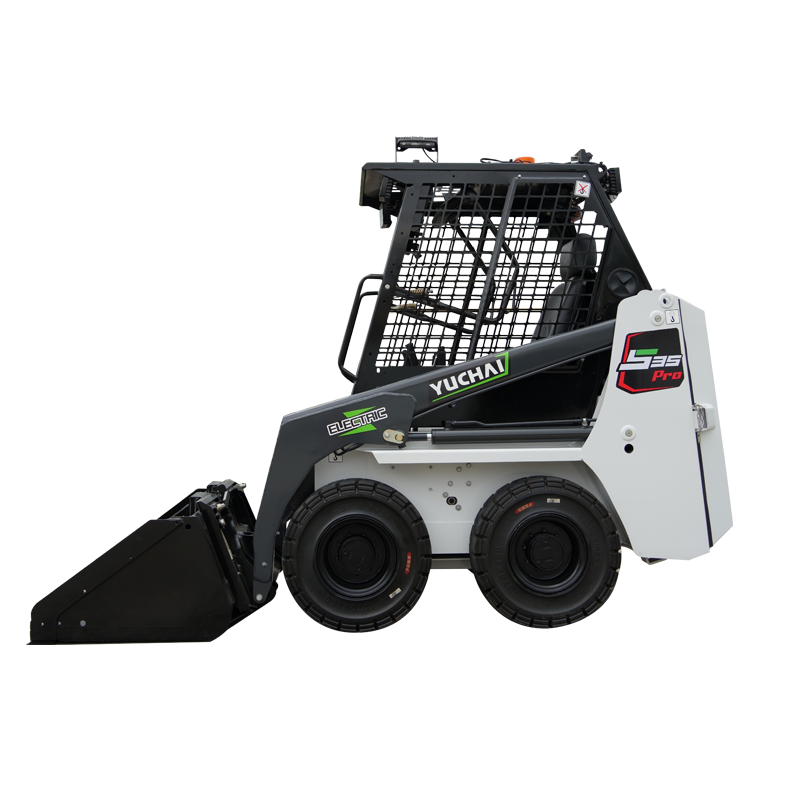

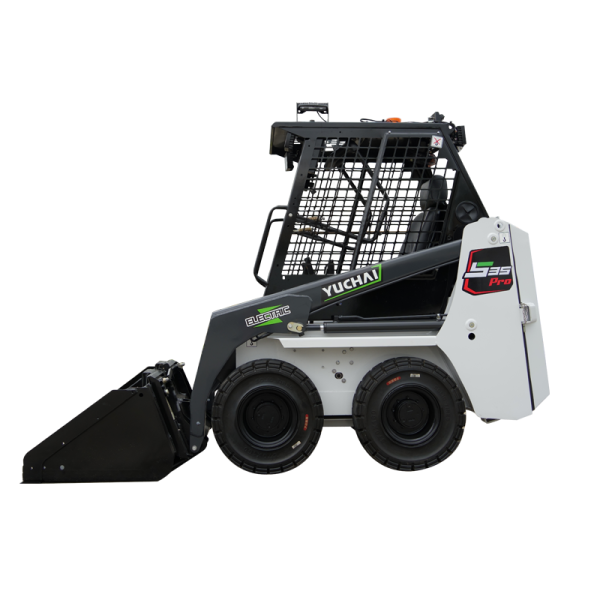

The Yuchai S35Pro/S35Max electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety. lts compact design and excellent maneuverability make it ideal forextremely narrow spaces, easily navigating corridors, aisles, alleys, and low-heightareas. lt can be equipped with various attachments for functions such as loading,sweeping, and crushing.The S35Max long-endurance version offers fast charging in just 1 hour, allowingfor 9-11 hours of continuous operation.
|
Performance Parameters |
||
|
Basic parameter |
|
YCS35Pro |
|
Machine Weight |
kg |
1540 |
|
Bucket capacity |
m³ |
0.29 |
|
Bucket width |
mm |
1126 |
|
Technical Specification |
|
|
|
Battery |
|
Lithium lron Phosphate |
|
Rated power |
kW/rpm |
9/3150+4×2/3500 |
|
Max. torque/speed |
N.m/N.m |
70N.m/1500+4×36.8N.m/995 rpm |
|
Battery capacity |
kWh |
21.29 |
|
Rated Operating Load |
kg |
350 |
|
Tipping Load |
kg |
700 |
|
System working pressure |
MPa |
33.7 |
|
Flow Rate |
L/min |
20.5（0~+0.5） |
|
Increase maximum digging force |
kN |
8 |
|
Tipping |
kN |
9 |
|
Max. travel speed(low gear ) |
km/h |
0～10.5 |
|
1 hour |
|
1 hour Charging from 30% to 80% |
|
Endurance |
h |
6~8 |
|
Drive System |
|
|
|
Wheel side motor driving |
|
|
|
Wheel side Auto Hold |
|
|
|
Operating parameter |
|
|
|
A Overall operating height |
mm |
3245 |
|
B Height to top of cab |
mm |
1815 |
|
C Dumping angle at maximum height |
° |
25/22 |
|
D Ground clearance |
mm |
141 |
|
E Wheelbase |
mm |
722 |
|
F Overall length without standard bucket |
mm |
1952 |
|
G Overall length with standard bucket |
mm |
2682 |
|
H Maximum angle of flat ground |
° |
22 |
|
I Unloading height |
mm |
1850 |
|
J Height to bucket hinge pin |
mm |
2410 |
|
K Loading distance at Max. unloading height |
mm |
545 |
|
L Dumping angle at maximum height |
° |
34 |
|
M Rollback of bucket at full height |
° |
97 |
|
N Bucket width |
mm |
1126 |
|
O Radius of gyration |
mm |
1650 |
|
P Tread |
mm |
756 |
|
Q Machine width |
mm |
959 |
1.Electric drive control intelligent mode
2.Global first wheel side motor driving technology
3.Global first wheel side AUTO-HOLD technology
4.Integrated chassis
5.Electric drive control intelligent mode
6.Battery life increased by 32%
The Yuchai S35Pro/S35Max electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety. lts compact design and excellent maneuverability make it ideal forextremely narrow spaces, easily navigating corridors, aisles, alleys, and low-heightareas. lt can be equipped with various attachments for functions such as loading,sweeping, and crushing.The S35Max long-endurance version offers fast charging in just 1 hour, allowingfor 9-11 hours of continuous operation.
