Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear

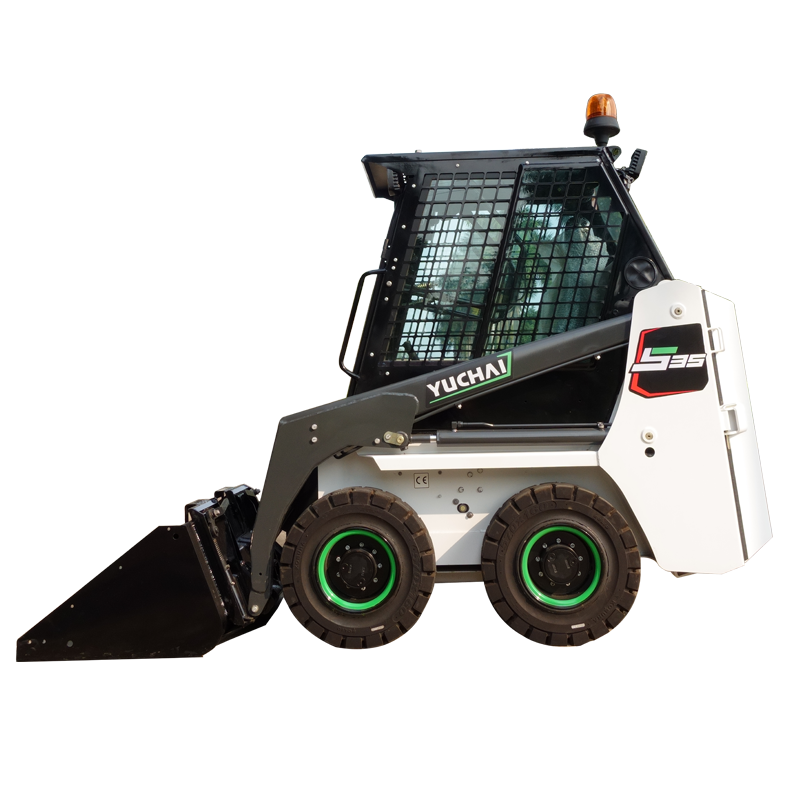

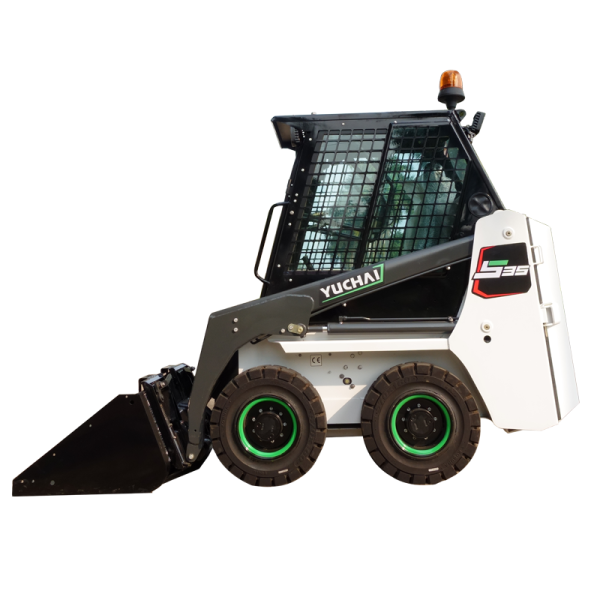

The Yuchai S35 is an epoch-making electric wheeled skid-steer loader. This new product is going to redefine the mini skid steer loader in next few years.
With a slim body of only 95 centimeters in width and two meters in length, weighing 1,410 kilograms, S35 has extremely excellent indoor passing ability and transfer performance. It can travel at a speed of 15km/h, rotate in tight spaces, and swiftly swap between multiple attachments. Equipped with a mature hydraulic quick-coupling system, connections to your attachments can be done effortlessly in no time.
The battery of S35 is from the top5 manufacturer of China, which allows you to choose from various charging options while offering stable performance and unmatched quality.
S35 adopts Hub motor technology, and bypasses the traditional transmission bridge and gear box, resulting in more efficient movement and steering. Energy recovery function is standard on this machine, effectively prolongs machine working hours. The independently regulate hydraulic flow function allows you to get your job done with minimal energy consumption.
The suspended seat brings you utmost comfort in various working conditions. The instrument and control buttons on S35 are simple and easy accessed.
With this electric machine, the operator energy cost is decreased by 90%, and the maintenance cost is decreased by 95%, and significantly reduce downtime due to the simple technical scheme.
The Yuchai S35 is not only a zero-emission and noiseless machine, but it also stands as your most reliable partner at work.
|
YCS35 Performance Specification |
|
|
Technical data |
|
|
Rated load(ISO14397-1) |
350 kg |
|
Tipping Load (ISO14397-1) |
680 kg |
|
Boom rising force |
8100N |
|
Bucket rising force |
9000N |
|
Max. travel speed(low gear ) |
10.5 km/h |
|
Machine weight |
1410 kg |
|
Battery |
|
|
Model |
|
|
Power |
21.3 kWh |
|
Endurance |
6-8 h |
|
|
|
|
Machine weight |
1410 kg |
|
Operating type |
|
|
Steering |
The direction and speed are controlled by the left and right potentiometer handles |
|
Lifting and dumping |
Separately controlled by left and right foot pedals |
|
Front Hydraulic Auxiliary (Standard) |
Controlled by right control lever |
|
Hydraulic system |
|
|
Front Auxiliary Hydraulic Max Flow |
|
|
Max. pump displacement |
|
|
Drive System |
|
|
Battery power + hub motor drive |
|
|
Parking system |
|
|
Wheel parking |
|
|
Standard configuration |
|
|
safety locking apparatus (BICS) |
Rear window |
|
Front Hydraulic Auxiliary |
Seat Belt |
|
Boom Support |
Seat safety bar |
|
23x5.70-12 Standard tire |
Automatic start and stop technology |
|
Front and rear operation lamps |
horn |
|
Reversing alarm |
Suspension Seat |
The Yuchai S35 is an epoch-making electric wheeled skid-steer loader. This new product is going to redefine the mini skid steer loader in next few years.
With a slim body of only 95 centimeters in width and two meters in length, weighing 1,410 kilograms, S35 has extremely excellent indoor passing ability and transfer performance. It can travel at a speed of 15km/h, rotate in tight spaces, and swiftly swap between multiple attachments. Equipped with a mature hydraulic quick-coupling system, connections to your attachments can be done effortlessly in no time.
The battery of S35 is from the top5 manufacturer of China, which allows you to choose from various charging options while offering stable performance and unmatched quality.
S35 adopts Hub motor technology, and bypasses the traditional transmission bridge and gear box, resulting in more efficient movement and steering. Energy recovery function is standard on this machine, effectively prolongs machine working hours. The independently regulate hydraulic flow function allows you to get your job done with minimal energy consumption.
The suspended seat brings you utmost comfort in various working conditions. The instrument and control buttons on S35 are simple and easy accessed.
With this electric machine, the operator energy cost is decreased by 90%, and the maintenance cost is decreased by 95%, and significantly reduce downtime due to the simple technical scheme.
The Yuchai S35 is not only a zero-emission and noiseless machine, but it also stands as your most reliable partner at work.
