Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear

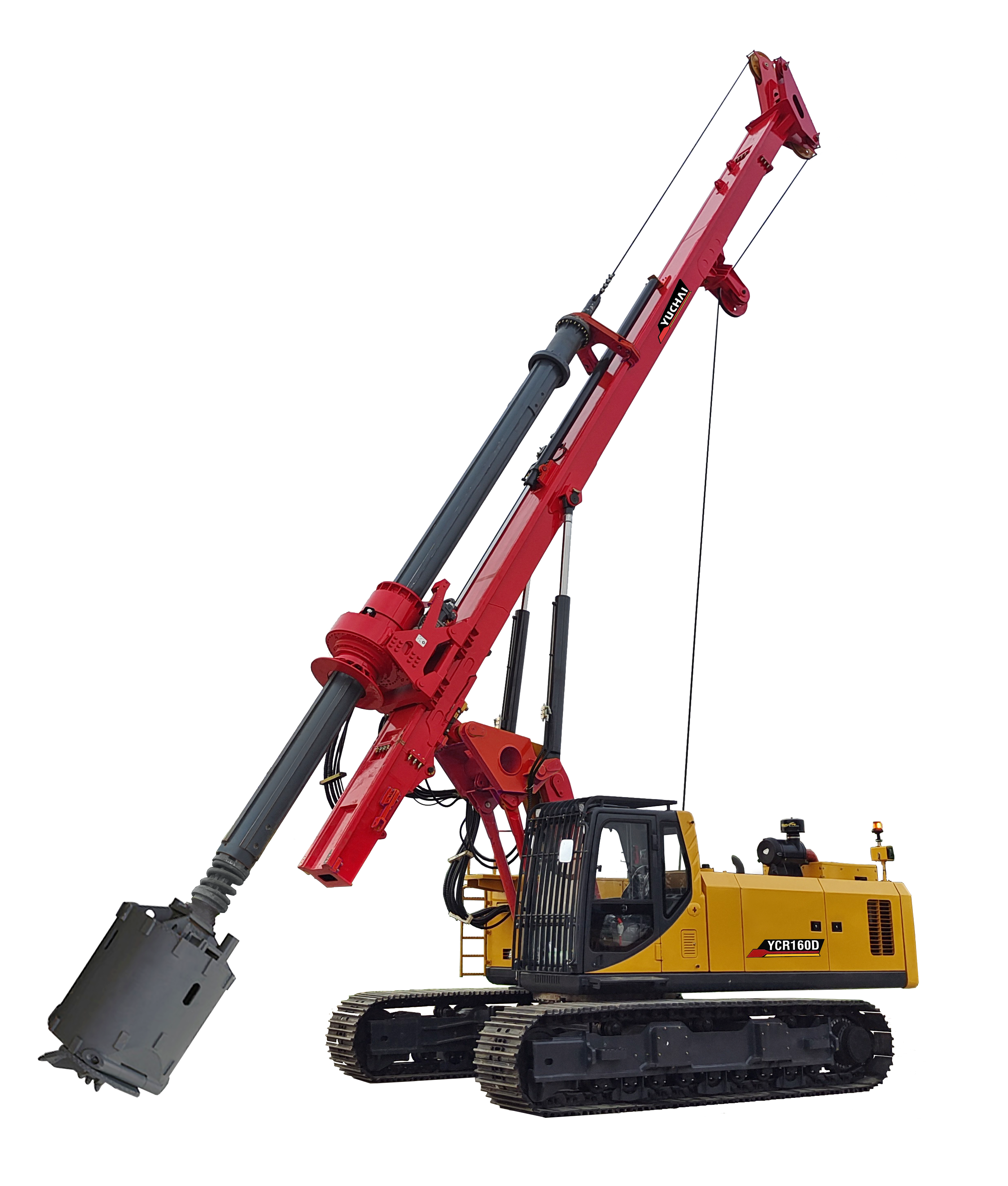

As a boutique model of YuchaiHI, YCR160D rotary drilling rig has been favored by customers since launch. It is equipped with imported brand power and hydraulic system assembly. EFl large displacement technology leads to high energy efficiency, green & environmental protection, and strong power.
It also has power reserve technology to meet harsh working conditions as high plateau. More spacious and upscale cab. Better operation comfort. Better matched control of whole machine. More superior and reliable performance. More stable and safe working condition. With self-developed machine-embedded software, advance intelligent control system, integrated circuit technology and CAN bus virtual instrumentation technology, it has fault diagnostic function, more scientific and applicable machine interface operation, and realizes automatic real-time monitoring, display and feedback in the whole construction process. It is a new experience. Transportation with poles makes transfer flexible and convenient. It is very suitable for infrastructure construction, renovation of dilapidated buildings and other fields.
|
Main parameter |
Units |
Parameters |
|
Chasis |
|
|
|
Engine Model |
|
QSB7-C227 |
|
Rated Power/Rotary Speed |
kW/rpm |
169/2050 |
|
Rotary Drive |
|
|
|
Max.output torque |
kN•m |
165 |
|
Rotary speed |
rpm |
6~30 |
|
Max.pull-down piston push |
t |
180 |
|
Max.pulling force |
t |
190 |
|
Max.pull-down piston strlke |
mm |
4000 |
|
Main winch |
|
|
|
Max.pulling force |
t |
175 |
|
Max.pulling speed |
m/min |
70 |
|
Wire Rope Diameter |
mm |
φ26 |
|
Auxiliary winch |
|
|
|
Max.pulling force |
t |
50 |
|
Max.pulling speed |
m/min |
42 |
|
Wire Rope Diameter |
mm |
φ14 |
|
Mast Rake |
|
|
|
Forwards backwards |
° |
5 |
|
Side backwards |
° |
±5 |
|
Drilling hole |
|
|
|
Max.Drilling Diameter |
mm |
1500 |
|
The max.drilling depth |
m |
50 |
|
Main machine |
|
|
|
Machine weight |
t |
52 |
|
Transporting state size |
mm |
15525×3100×3550 |
|
Working state size |
mm |
8850×4000×16678 |
|
Recommended drill pipe type |
|
|
|
Drill pipe configuration |
|
MZ φ377-5×11 m |
As a boutique model of YuchaiHI, YCR160D rotary drilling rig has been favored by customers since launch. It is equipped with imported brand power and hydraulic system assembly. EFl large displacement technology leads to high energy efficiency, green & environmental protection, and strong power.
It also has power reserve technology to meet harsh working conditions as high plateau. More spacious and upscale cab. Better operation comfort. Better matched control of whole machine. More superior and reliable performance. More stable and safe working condition. With self-developed machine-embedded software, advance intelligent control system, integrated circuit technology and CAN bus virtual instrumentation technology, it has fault diagnostic function, more scientific and applicable machine interface operation, and realizes automatic real-time monitoring, display and feedback in the whole construction process. It is a new experience. Transportation with poles makes transfer flexible and convenient. It is very suitable for infrastructure construction, renovation of dilapidated buildings and other fields.
