Power range: 4350-82440kW
Applications: bulk carriers, oil tankers, container ships, etc.

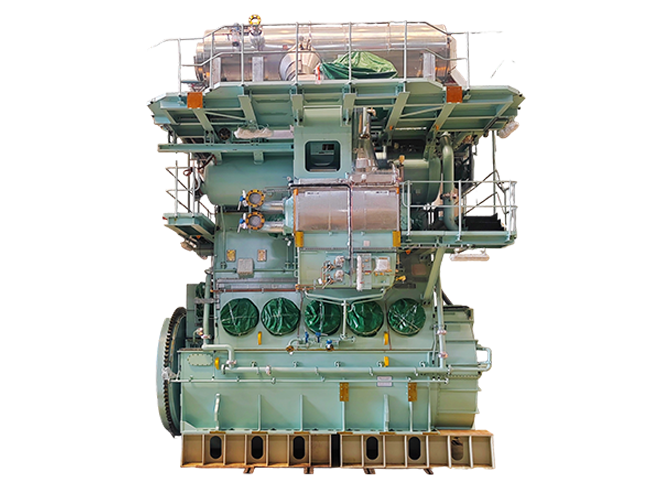

The YCMP-MAN B&W S-ME, G-ME, and ME-GI series of marine low-speed engines are designed for the main propulsion systems of medium to large vessels. Featuring a compact structural design, these engines deliver high output power and exceptional environmental performance within the same displacement range. They operate with safety, reliability, and high efficiency, ensuring energy conservation and compliance with stringent emission standards.
| Engine Type | R1 Power Range(kW) | Speed Range(rpm) |
| G95ME-C10.6/10.5 | 41220-82440 | 70-80 |
| G95ME-C10.5-LGIM | 41220-82440 | 70-80 |
| G90ME-C10.5 | 37440-74880 | 72-84 |
| G80ME-C10.6/10.5 | 28260-42390 | 58-72 |
| G80ME-C10.5-LGIM | 28260-42390 | 58-72 |
| G70ME-C10.5 | 15850-19020 | 63-80 |
| S70ME-C10.5 | 17150-27440 | 73-91 |
| G60ME-C10.5 | 14200-22720 | 72-103 |
| S60ME-C10.6/10.5 | 12450-19920 | 82-105 |
| G50ME-C10.7 | 8600-13760 | 75-100 |
| G50ME-C9.6-LGIM | 8600-15480 | 79-100 |
| S50ME-C10.6 | 9500-17100 | 85-125 |
| S50ME-C9.7 | 9500-17100 | 85-125 |
| S50ME-C9.6-LGIM | 8900-16020 | 89-117 |
| S46ME-C8.6 | 6950-11120 | 105-130 |
| G45ME-C9.7 | 6950-11120 | 85-111 |
| S40ME-C9.5 | 5675-10215 | 104-146 |
| S35ME-C9.7 | 4350-6960 | 118-167 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
The YCMP-MAN B&W S-ME, G-ME, and ME-GI series of marine low-speed engines are designed for the main propulsion systems of medium to large vessels. Featuring a compact structural design, these engines deliver high output power and exceptional environmental performance within the same displacement range. They operate with safety, reliability, and high efficiency, ensuring energy conservation and compliance with stringent emission standards.
