Rated/peak power of motor (kW): 115/157
Suitable vehicle models: forklifts, wheel excavators
1. Comfort
It can operate purely on electric power and has excellent NVH performance.
2. Easy maintenance
naturally aspirated engine, no post-processing, simple maintenance.
3. Low fuel consumption
The dedicated hybrid engine is efficiently matched to operate in the optimal working area.
4. Powerful functionality and wide adaptability
Based on the functional requirements of different vehicle models, modular functionality is achieved, which includes pure electric drive, hybrid drive, engine direct drive, driving power generation, parking power generation, and loading and unloading power. It is compatible with multiple vehicle models such as buses, highway buses, trucks, and special-purpose vehicles.
|
Model |

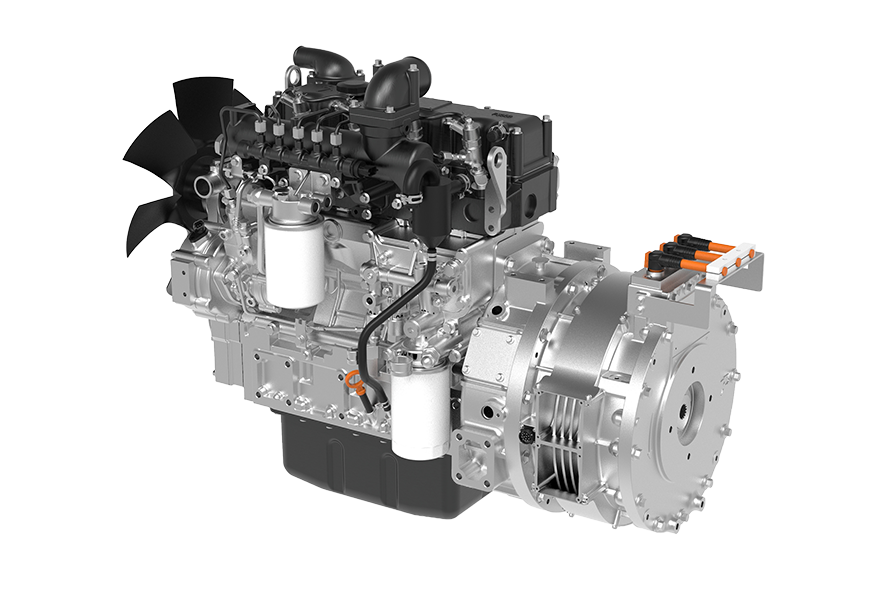

YCHP030T |
|
External dimensions (mm) |
L1742×W733×H927 |
|
Weight (kg) |
805 |
|
Voltage platform (V) |
600 |
|
Rated/peak power (kW) |
115/157 |
|
Rated/peak torque (N·m) |
11/15 |
|
Rated speed/maximum speed (/min) |
1/3 |
|
Cooling method |
water-cooling |
|
Maximum output torque of the assembly（N·m） |
7000 |
|
Displacement（L） |
4.3 |
|
Maximum no-load speed（rpm） |
2580 |
|
Universal characteristics with the lowest fuel consumption（g/kWh） |
≤194 |
|
Emission level |
China Ⅵ |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1. Comfort
It can operate purely on electric power and has excellent NVH performance.
2. Easy maintenance
naturally aspirated engine, no post-processing, simple maintenance.
3. Low fuel consumption
The dedicated hybrid engine is efficiently matched to operate in the optimal working area.
4. Powerful functionality and wide adaptability
Based on the functional requirements of different vehicle models, modular functionality is achieved, which includes pure electric drive, hybrid drive, engine direct drive, driving power generation, parking power generation, and loading and unloading power. It is compatible with multiple vehicle models such as buses, highway buses, trucks, and special-purpose vehicles.
