Hydrogen power system
1.Reliable and durable
No auxiliary start at minus 30℃ Average trouble free operation ≥ 2000h, lifespan>20000h.
2.Lower hydrogen consumption
Rated efficiency>47% ，Range>400km.
3.Strong power
Rated power ≥ 60kW，Peak value>65kW.
|

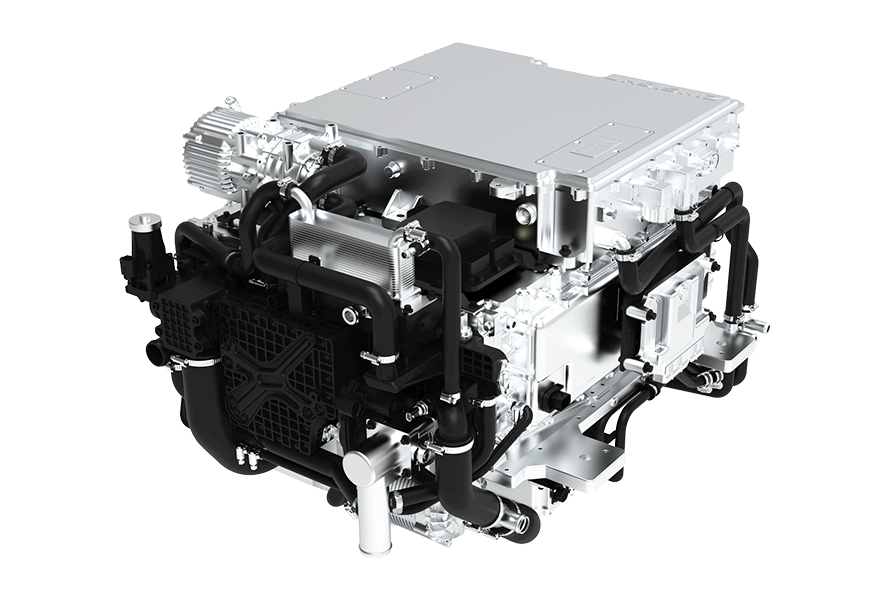

model |
YCFC60 |
|
Rated power (kW) |
60 |
|
Peak power (kW) |
>65 |
|
Maximum operating current (A) |
700 |
|
Working voltage (V) |
450-750 |
|
Working/storage temperature range (℃) |
-30～45/-40~60 |
|
-30 ℃ cold start time (s) |
<140 |
|
Mass to power ratio (W/kg) |
>400 |
|
Dimensions L * W * H (mm) |
910×740×575 |
|
protection grade |
IP67 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.Reliable and durable
No auxiliary start at minus 30℃ Average trouble free operation ≥ 2000h, lifespan>20000h.
2.Lower hydrogen consumption
Rated efficiency>47% ，Range>400km.
3.Strong power
Rated power ≥ 60kW，Peak value>65kW.
