Products

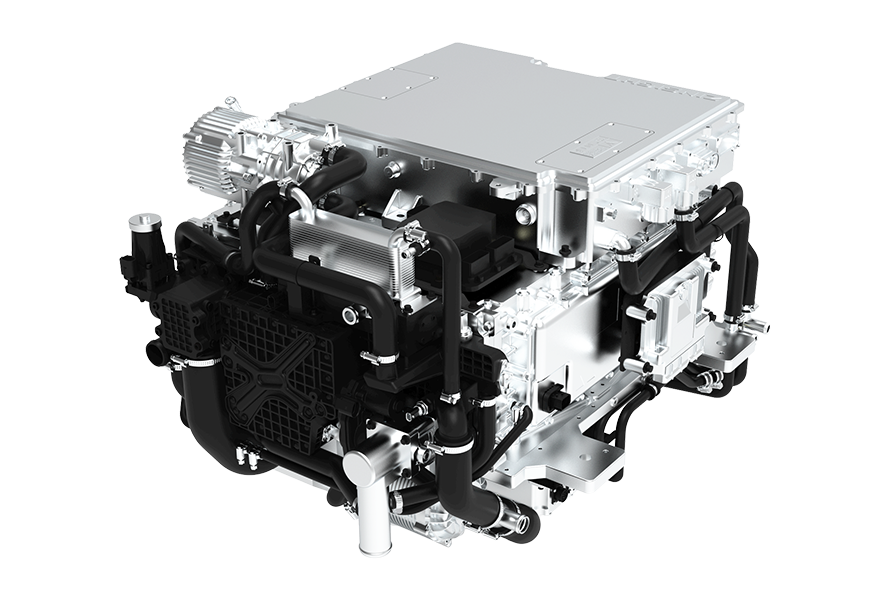

Hydrogen power system
High reliability: The system design life is over 10000 hours, and all key components of the system have completed verification testing.
Strong environmental adaptability: -30℃ low temperature without auxiliary startup, stable power output can be achieved externally within 60 seconds.
Low energy hydrogen circulation scheme: adopting a hydrogen circulation pump+hydrogen injection scheme
|
model |
YCFC125 |
|
Rated power (kW) |
≥125 |
|
Overload power (kW) |
≥128.2 |
|
Mass specific power (W/kg) |
≥500 |
|
Rated efficiency/maximum efficiency |
≥42/60 |
|
Low temperature start-up and storage temperature (℃) |
-30/-40 |
|
Low temperature start-up time (℃) |
＜120s@-30 |
|
Environmental adaptability (℃) |
-30~43 |
|
Insulation resistance (including coolant) (Ω/V) |
＞2000 |
|
protection grade |
IP67 |
|
System durability (h) |
15000 |
|
Target system boundary LWH (mm) |
900*700*680 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
High reliability: The system design life is over 10000 hours, and all key components of the system have completed verification testing.
Strong environmental adaptability: -30℃ low temperature without auxiliary startup, stable power output can be achieved externally within 60 seconds.
Low energy hydrogen circulation scheme: adopting a hydrogen circulation pump+hydrogen injection scheme
