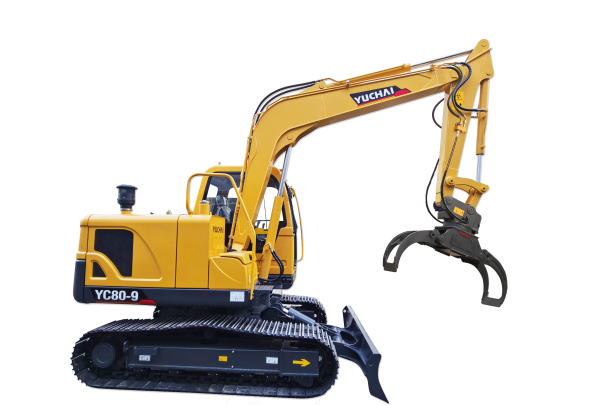

Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.Applicable to all terrain
2.Chinese three emission grade
3.King size cabin
4.Ultra high work efficiency
5.Excellent grabbing capacity
6.Durable metal covering
7.Efficient cooling and heating air conditioning
8.Reliable and durable structural parts
9.Convenient maintenance
| Basic parameter | |
| Machine weight | 7800kg |
| Standard bucket capacity | 0.26m³ |
| Standard bucket width | 845mm |
| Performance parameter | |
| Engine power | 44.4kW |
| Max.Gradeabilty | 35° |
| Max digging force of stick | 38kN |
| Max digging force of bucket | 56kN |
| Traveling speed | 2.6/3.9 km/h |
| Max hauling force | 68 kN |
| Slewing speed ofplatform | 9~13 rpm |
| Operating parameter | |
| Maximum loading height | 5140mm |
| Max.work radius of max.loading height | 2930mm |
| Maximum working radius (height 2.5m) | 5500mm |
| Max.jaw opening | 1550mm |

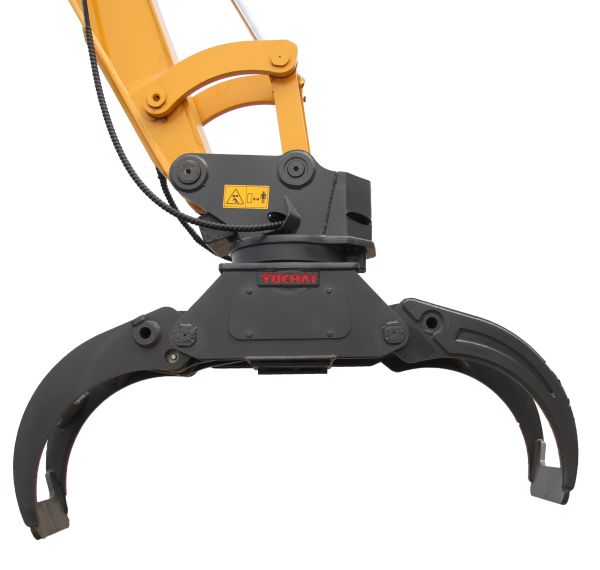

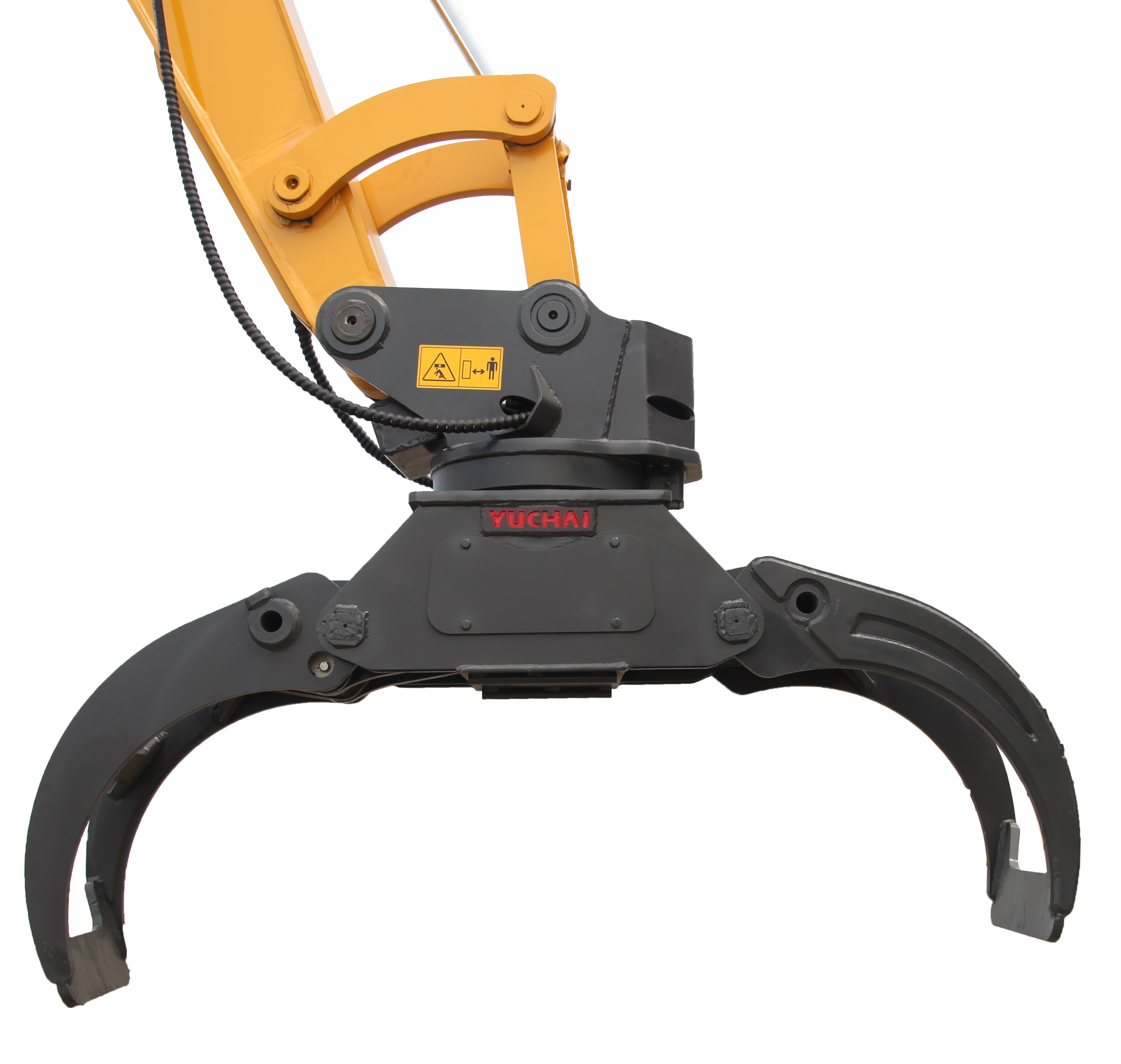

| Maximum holding circle of wood grab | φ500mm |
| Transportation dimension | |
| Overall length (transportation status) | 6240mm |
| Overall width(transportation status) | 2260mm |
| Overall height (transportation record) | 2700mm |
| Other Parameter | |
| Width of track | 2150mm |
| Length of track | 2783mm |
| Track shoe width | 450mm |
| Minimum ground dearance | 386mm |
| Height of counterweight from the ground | 800mm |
| Tail tuming radius | 1840mm |
| Track wheelbase | 2200mm |
| Fuel tank capacity | 151L |
| Hydraulic tank capacty | 125L |
1.Applicable to all terrain
2.Chinese three emission grade
3.King size cabin
4.Ultra high work efficiency
5.Excellent grabbing capacity
6.Durable metal covering
7.Efficient cooling and heating air conditioning
8.Reliable and durable structural parts
9.Convenient maintenance
