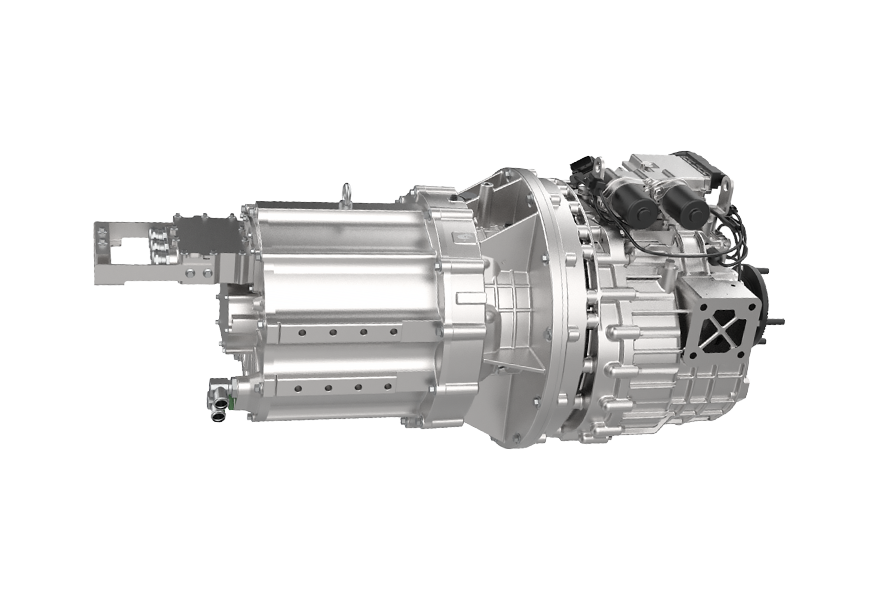

Electric drive system
Lightweight: The system is lightweight and has small external dimensions.
High power density: Flat wire motor with high power density, high efficiency, and good NVH performance.
Low cost: High speed motor solution, low system cost.
|
model |
YCET280 |
|
Motor model |
TZ330XS280 |
|
Motor type |
Permanent magnet synchronous motor |
|
Voltage platform（VDC） |
600 |
|
Rated/peak power (kW) |
280/430 |
|
Rated/peak torque (N.m) |
440/800 |
|
Rated/peak speed（r/min） |
6077/10000 |
|
Transmission |
Four speed gearbox/six speed gearbox |
|
Maximum output torque at the wheel （N·m） |
20700 |
|
Speed ratio |
8.625/3.824/1.927/1.00 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
Lightweight: The system is lightweight and has small external dimensions.
High power density: Flat wire motor with high power density, high efficiency, and good NVH performance.
Low cost: High speed motor solution, low system cost.
