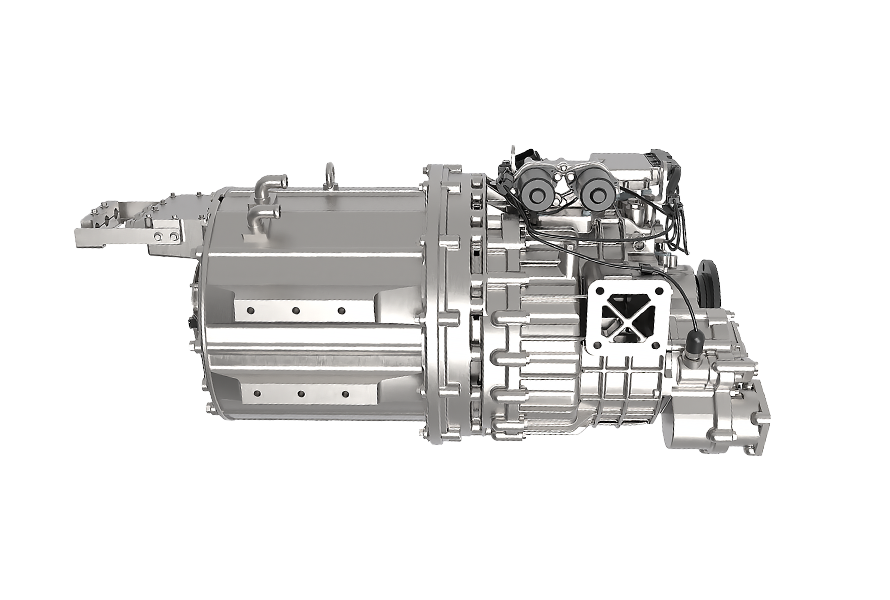

Electric drive system
1.High speed flat wire motor design, with a high efficiency zone ratio of "double 90".
2.Motor+reducer configuration design, lighter than low-speed circular wire motors by about 100kg.
3.Universal interface design, compatible with mainstream transmissions in the industry.
|
model |
YCET270 |
|
Motor type |
Permanent magnet synchronous motor |
|
Voltage platform（VDC） |
600 |
|
Voltage range（VDC） |
400~750 |
|
Rated/peak power (kW) |
270/410 |
|
Rated/peak torque (N.m) |
1400/2400 |
|
Rated/peak speed（r/min） |
1842/3500 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.High speed flat wire motor design, with a high efficiency zone ratio of "double 90".
2.Motor+reducer configuration design, lighter than low-speed circular wire motors by about 100kg.
3.Universal interface design, compatible with mainstream transmissions in the industry.
