Machine weight：20250kg
Engine power：24/1454kW/rpm
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.Excellent terrain traversal capability
2.Operates in all angles
3.Strong demolition capabilities
4.Remote control
5.Safety
6.Reliability
7.Saving 90% on fuel costs
8.Maintenance in 2000 hours
9.Low failure rate
|

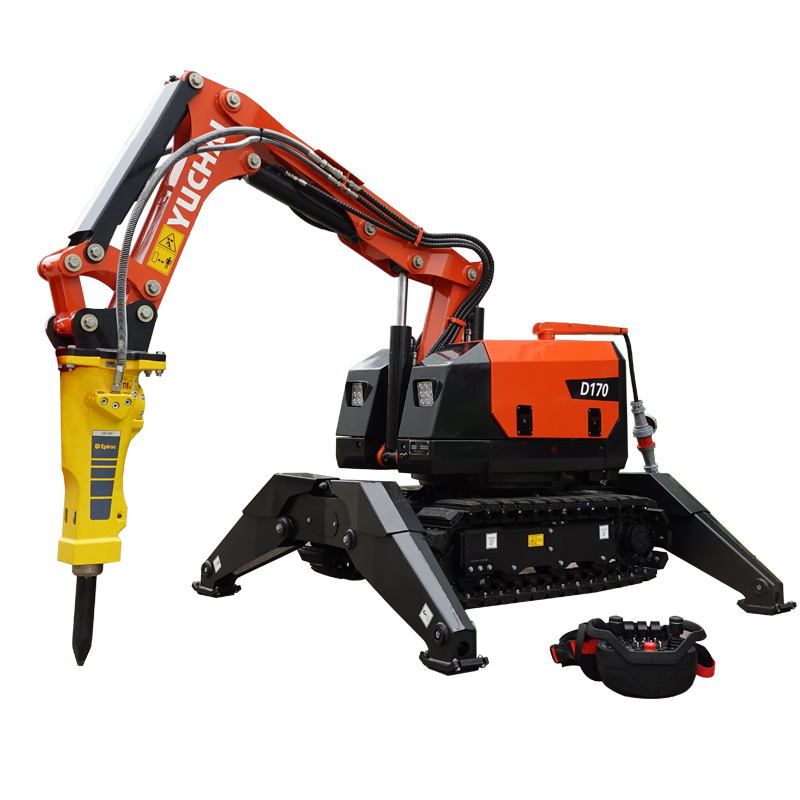

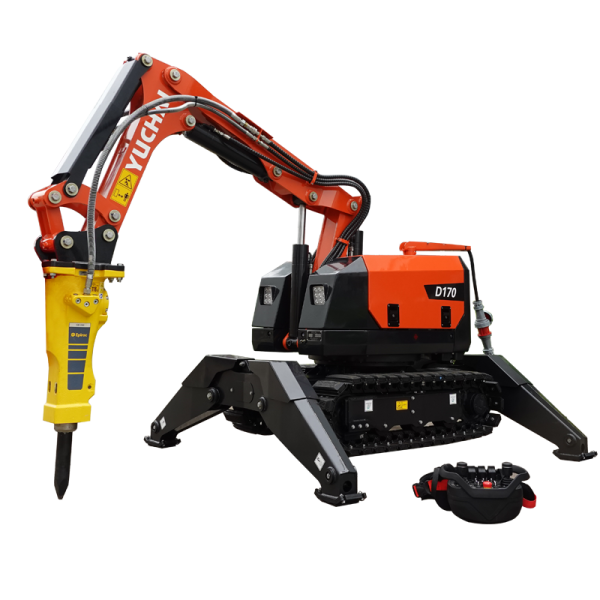

D170 Electric Remote-Controlled Demolition Robot |
|
|
Total Weight (Rubber Tracks) |
1850kg |
|
Total Weight (Steel Tracks/Track Pads/Extension Device/Additional Weight each increased by 50kg) |
2050kg |
|
Rated Power |
24/1454kW/rpm |
|
Voltage/Frequency/Current |
380/50/47V/ Hz/A |
|
Max. slewing Speed |
6r/min |
|
Max. Travel Speed |
2km/h |
|
Max.ground Pressure Ratio |
33kPa |
|
Noise Power (with/without Breaker) |
87/118dB（A） |
|
Max. Cradeability |
30° |
|
Max.total Traction Forceta |
22kN |
|
Hydraulic System |
Load-Sensitive System |
|
System Rated Flow |
65.4L/min |
|
Standard System Pressure |
170Bar |
|
Reinforced System Pressure |
230Bar |
|
Hydraulic Tank Capacity |
32L |
|
Control Method |
Remote Control (optional) |
|
Remote Control Distance |
300(optional)m |
|
Control System Voltage |
24V |
|
Hammer Model |
SB202 |
|
Hammer Weight |
200kg |
|
Standard Drill Rod |
Φ65×600mm |
|
Rated Pressure |
100~150Bar |
|
Rated Flow |
35~65L/min |
|
Impact Frequency |
850-1800bpm |
|
A Overall Length |
2400mm |
|
B Overall Width (folded/unfolded leg) |
780/1080mm |
|
C Overall Height |
1255mm |
|
I Ground Length of Tracks |
1045mm |
|
J Track Length |
1410mm |
|
V Track Gauge(folded/unfolded leg) |
550/850mm |
|
W Full Track Width (folded/unfolded leg) |
780/1080mm |
|
T Track Width |
230mm |
|
E Height of Counterweight from Ground |
495mm |
|
F Height of rear panel |
1120mm |
|
G Min. Ground Clearance |
190mm |
|
P Tail Length |
720mm |
|
N Leg Turning Radius |
1000mm |
|
O Machine Passing Diameter |
1380/1490mm |
|
K Machine Length |
1930mm |
|
D Platform Width |
780mm |
|
H Support Height |
145mm |
|
S Max. Width of Legs when Open |
2190mm |
|
X Front and Rear Support Span |
2010mm |
|
Y Left and Right Support Span |
2030mm |
|
α Front/Back Departure Angle |
27° |
|
AA Max. Operating Radius |
4450mm |
|
BB Max. Operating Height |
4820mm |
|
CC Max. Operating Depth |
2110mm |
|
DD Horizontal Operating Height |
1450mm |
|
Platform slewing Angle |
360° |
1.Excellent terrain traversal capability
2.Operates in all angles
3.Strong demolition capabilities
4.Remote control
5.Safety
6.Reliability
7.Saving 90% on fuel costs
8.Maintenance in 2000 hours
9.Low failure rate
