（1）1800kW~3000kW prime genset, for continuous and stable power supply.
（2）2000kW~3300kW standby genset, for reliable and fast standby power supply.

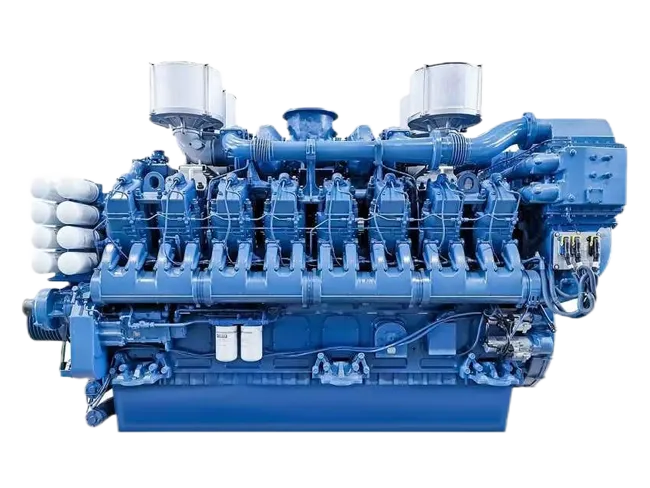

One head for one cylinder, with a maintenance window on the side of the engine body, which is convenient for maintenance.
High dynamic performance - The application of electronically-control unit pump/electronically-control HPCR (high pressure common rail), four-valve, efficient turbocharged & intercooled technology and Yuchai's combustion technology ensure low fuel consumption, low emission, excellent speed regulation performance, and fast and powerful load.
The engine body is made of high-strength materials, with an arc-reinforcing rib grid structure and a four-bolt main bearing structure, featuring high rigidity, low vibration, and low noise. The crankshaft is made of high-quality alloy steel by all-fiber extrusion forging, with shaft diameter and fillet quenching heat treatment, featuring wear resistance and long service life. World-class equipment and production technologies ensure stable and reliable quality. Meet the genset performance grade G3 requirements.
|
Model |
YCC105TA3000-G31 |
YCC105TA3300-G31 |
YCC105TA3600-G31 |
YCC105TA4000-G31 |
YCC105TA4200-G30 |
YCC105TA4500-G30 |
YCC105TA4900-G30 |
|
|
|
|
|
|
|
|
|
|
|
|
Cylinder quantity - bore/stroke (mm) |
16-200×210 |
16-200×210 |
16-200×210 |
16-200×210 |
16-200×210 |
16-200×210 |
16-200×210 |
|
|
Displacement (L) |
105.56 |
105.56 |
105.56 |
105.56 |
105.56 |
105.56 |
105.56 |
|
|
Number of valves per cylinder |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
Aspiration |
TAW |
TAW |
TAW |
TAW |
TAW |
TAW |
TAW |
|
|
PRP/Speed(kW/rpm) |
2005/1500 |
2205/1500 |
2405/1500 |
2673/1500 |
2808/1500 |
3010/1500 |
3280/1500 |
|
|
ESP/Speed(kW/rpm) |
2206/1500 |
2426/1500 |
2646/1500 |
2940/1500 |
3089/1500 |
3311/1500 |
3608/1500 |
|
|
COP/Speed(kW/rpm) |
1806/1500 |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
DCP/Speed(kW/rpm) |
2005/1500 |
2205/1500 |
2405/1500 |
2673/1500 |
2808/1500 |
3010/1500 |
3280/1500 |
|
|
Fuel System |
EUP |
EUP |
EUP |
EUP |
HPCR |
HPCR |
HPCR |
|
|
Generator |
PRP(kWe) |
1800 |
2000 |
2200 |
2400 |
2500 |
2700 |
3000 |
|
|
ESP(kWe) |
2000 |
2200 |
2400 |
2600 |
2800 |
3000 |
3300 |
|
|
COP(kWe) |
1600 |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
DCP(kWe) |
1800 |
2000 |
2200 |
2400 |
2500 |
2700 |
3000 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
One head for one cylinder, with a maintenance window on the side of the engine body, which is convenient for maintenance.
High dynamic performance - The application of electronically-control unit pump/electronically-control HPCR (high pressure common rail), four-valve, efficient turbocharged & intercooled technology and Yuchai's combustion technology ensure low fuel consumption, low emission, excellent speed regulation performance, and fast and powerful load.
The engine body is made of high-strength materials, with an arc-reinforcing rib grid structure and a four-bolt main bearing structure, featuring high rigidity, low vibration, and low noise. The crankshaft is made of high-quality alloy steel by all-fiber extrusion forging, with shaft diameter and fillet quenching heat treatment, featuring wear resistance and long service life. World-class equipment and production technologies ensure stable and reliable quality. Meet the genset performance grade G3 requirements.
