Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear

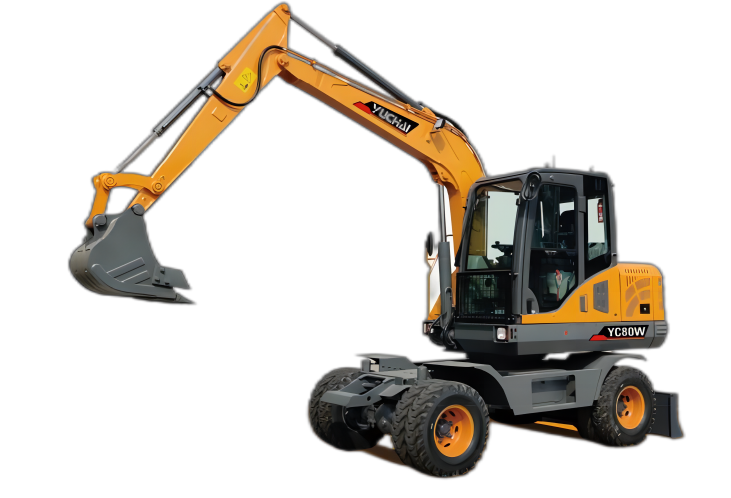

YC80W excavator is a new generation fu hydraulic wheel excavator independently developed by dime heavy industry. It adoptshigh-power and low fuel consumption environment-friendly standard engine, which ensures the strong power and power reserve of thewhole machine. The accurate matching of high-eiciency hydraulic system and bridge box ensures the random switching of working stateand running state.The hydraulic system of the whole machine is matched with imported hydraulic components, which has "high reliabilityAt the same time, it can provide a variety of special configurations to meet the needs of different countries and customers.
|
Machine weight |
kg |
6840 |
|
Engine |
|
|
|
Engine model |
|
YC4FA65-T300 |
|
power |
|
48kw 2200rpm/mir |
|
Describe |
Unit |
Size |
|
Shipping length |
mm |
6200 |
|
Total height during transportation |
mm |
2920 |
|
Overall width |
mm |
2150 |
|
Tail turning radius |
mm |
1855 |
|
Turntable width |
mm |
1930 |
|
Wheelbase |
mm |
2350 |
|
Track width |
mm |
1665 |
|
Height of bulldozer plate |
mm |
500 |
|
Lifting height of bulldozer |
mm |
380 |
|
Width of bulldozer plate |
mm |
2150 |
|
Support height of bulldozer |
mm |
60 |
|
Describe |
Unit |
Numerical value |
|
Maximum excavation radius |
mm |
6385 |
|
Maximum excavation heigh |
mm |
6910 |
|
Maximum excavation depth |
mm |
3930 |
|
Maximum unloading height |
mm |
5160 |
|
Bucket digging force |
kN |
45 |
|
Digging force of stick |
kN |
22 |
|
Hydraulic system pressure |
Mpa |
26 |
|
Bucket capacity |
m³ |
0.4 |
|
Walking speed |
km/h |
30 |
|
Hydraulic system flow |
L/min |
140 |
|
Slewing speed |
r/min |
12-13 |
|
Fuel tank capacity |
L |
120 |
|
Capacity of hydraulic oil tank |
L |
130 |
|
Gradient |
% |
≥60 |
YC80W excavator is a new generation fu hydraulic wheel excavator independently developed by dime heavy industry. It adoptshigh-power and low fuel consumption environment-friendly standard engine, which ensures the strong power and power reserve of thewhole machine. The accurate matching of high-eiciency hydraulic system and bridge box ensures the random switching of working stateand running state.The hydraulic system of the whole machine is matched with imported hydraulic components, which has "high reliabilityAt the same time, it can provide a variety of special configurations to meet the needs of different countries and customers.
