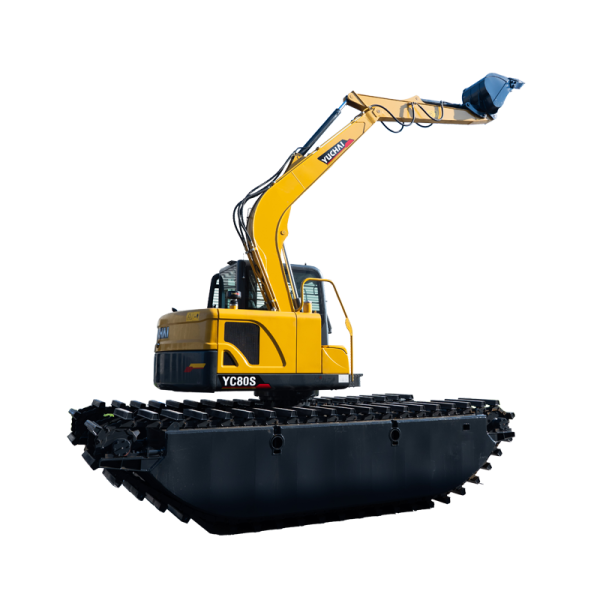

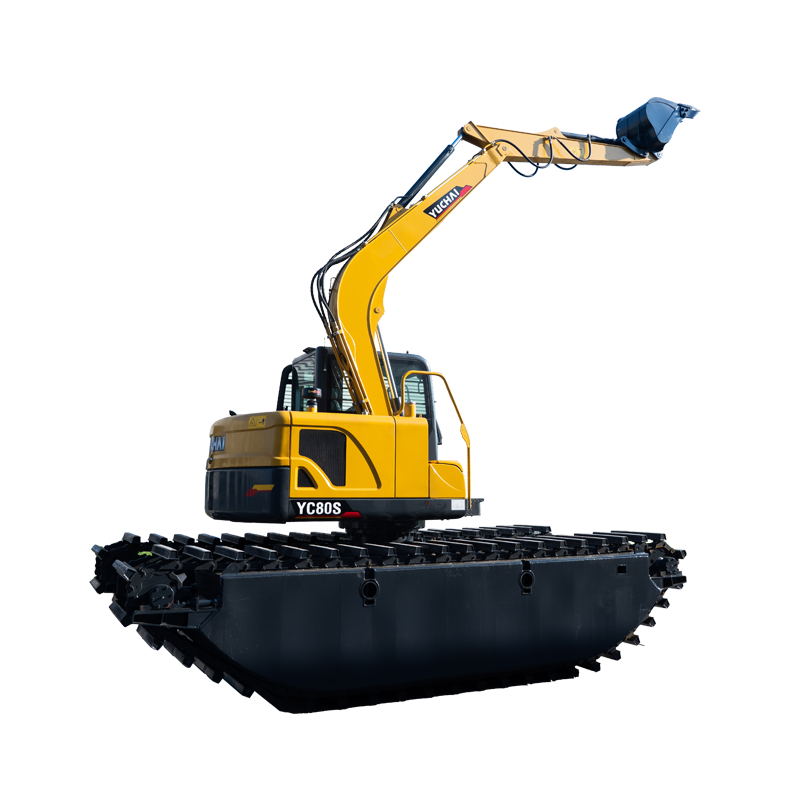

Machine weight：11120 kg
Bucket capacity：0.26m³
Rated power：44.4kW
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.Excellent performance
2.Low fuel consumption
3.High efficiency
4.Suitable for working conditions ofswampland，fishpond，canal, river etc.
|
Basic parameter |
||
|
Machine weight |
11120 |
kg |
|
Engine power |
44.4/2100 |
kW/rap |
|
Standard bucket capacity |
0.26 |
m3 |
|
Dimensions |
||
|
Length of Boom |
4210 |
mm |
|
Length of Stick |
2650 |
mm |
|
Length of Pontoon |
5700 |
mm |
|
Width of Pontoon |
1000 |
mm |
|
Height of Pontoon |
1300 |
mm |
|
Width of Chassis |
2950 |
mm |
|
Operating parameters |
||
|
Max.wading depth |
1300 |
mm |
|
Max.digging height |
8292 |
mm |
|
Max.dumping height |
6392 |
mm |
|
Max.digging depth |
4025 |
mm |
|
Max.Vertical digging depth |
3565 |
mm |
|
Max.digging radius |
7770 |
mm |
|
Max.digging radius on ground level |
7510 |
mm |
|
Fuel tank |
151 |
L |
|
Hydraulic tank |
125 |
L |
|
Transportation dimension |
||
|
Length |
7650 |
mm |
|
Width |
2950 |
mm |
|
Height |
3345 |
mm |
1.Excellent performance
2.Low fuel consumption
3.High efficiency
4.Suitable for working conditions ofswampland，fishpond，canal, river etc.
