Model |

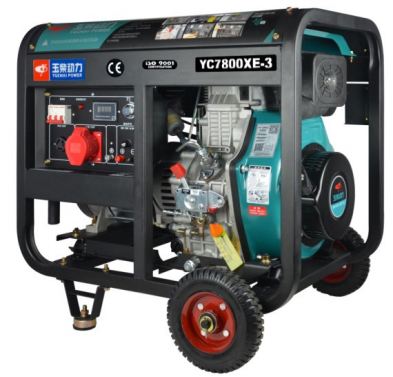

YC7800XE |
|
Rated frequency （HZ） |
50 |
|
Rated voltage（V） |
380 |
|
Rated current（A） |
9.5 |
|
Rated power（kVA） |
7 |
|
Max.Power(kVA) |
7.5 |
|
Power factor(cosφ) |
0.8 |
|
Phase number |
Three phase |
|
Dimensions(L*W*H) （mm） |
730x495x620 |
|
Net weight（kg） |
128 |
|
Fuel tank capacity（L） |
12.5 |
|
Noise level(dB/7m) |
85 |
|
Engine model |
YC188FE |
|
Engine type |
In line, one cylinder, four stroke |
|
Air Intake Type |
Naturally aspirated |
|
Cooling type |
forced air cooled |
|
Speed adjustment mode |
Machine |
|
Bore（ mm） |
88 |
|
Stroke（mm） |
75 |
|
Displacement（L） |
0.456 |
|
Fuel loss rate(g/kw*h) |
280 |
|
Lubricating oil capacity（L） |
1.6 |
|
Rated speed (r/min) |
3000 |
|
Starting system |
Electric start |
|
Motor insulation class |
F |
|
Steady state rate（%） |
5 |
|
Temperature rise |
40 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
