Products
Power range：192kW~300kW
Applications：700~1,500t inland transport ship, 18~26m fishing boat, cruise ship, etc.
Following the demanding specifications for mechanical development verification, all products have been subject to more than ten verifications during R&D, such as deep thermal shock tests, high-temperature, and alpine-cold tests, and crankshaft fatigue tests; The product is developed reliably using European technology and in-depth and generalized mechanical development procedures, enabling an overhaul period of the engine of over 12000 hours; Its integral crankcase, rear gear chamber and advanced point-line meshing gear technology make its noise lower and offer its customers greater comfort than similar domestic products.
Yuchai's advanced independent electronic control technology ensures flexible fuel injection quantity control, high fuel injection pressure, proper combustion control, stable operation, low combustion noise, better dynamic performance, low speed and high torque, high torque reserve, quick response, and faster acceleration. The application of the four-valve technology ensures substantially increased flow area of intake and exhaust; The central fuel injector enables more even atomization and more sufficient combustion. The valve oil seal is added using Yuchai's proprietary piston ring seal and valve oil seal technologies, making the consumption of lubricating oil above 50% lower than that of domestic products at the same power level.
It is equipped with digital intelligent local and remote monitoring instruments and integral cast iron fresh water cooling jacket exhaust pipe, ensuring lower cabin temperature and safer use.
|
Item |

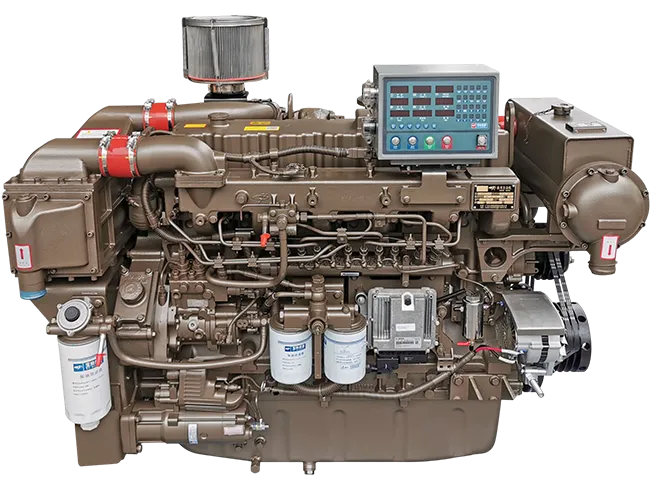

YC6MK Series marine diesel engine |
|||
|
Model |
YC6MK410L-C20 |
YC6MK320L-C23 |
YC6MK300L-C24 |
|
|
Number of cylinders - bore × stroke (mm) |
6-123×145 |
|||
|
|
||||
|
Displacement (L) |
10.338 |
|
||
|
Number of valves per cylinder |
4 |
|
||
|
Induction system |
Turbocharged & intercooled |
|
||
|
Rated power/speed (kW(Ps)/r/min) |
300（410）/2100 |
235（320）/1800 |
220（300）/1500 |
|
|
Overload power/speed (kW(Ps)/r/min) |
330（450）/2168 |
258.5（350）/1858 |
242（330）/1548 |
|
|
Min. specific fuel consumption of external characteristics (g/kW·h) |
≤188 |
|
||
|
Certificates |
ZC、CCS、EIAPP、China II |
|
||
|
Diemension (L×W×H) (mm) |
1536x1021x1306 |
|
||
|
Dry weight (kg) |
1200 |
|
||
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
Following the demanding specifications for mechanical development verification, all products have been subject to more than ten verifications during R&D, such as deep thermal shock tests, high-temperature, and alpine-cold tests, and crankshaft fatigue tests; The product is developed reliably using European technology and in-depth and generalized mechanical development procedures, enabling an overhaul period of the engine of over 12000 hours; Its integral crankcase, rear gear chamber and advanced point-line meshing gear technology make its noise lower and offer its customers greater comfort than similar domestic products.
Yuchai's advanced independent electronic control technology ensures flexible fuel injection quantity control, high fuel injection pressure, proper combustion control, stable operation, low combustion noise, better dynamic performance, low speed and high torque, high torque reserve, quick response, and faster acceleration. The application of the four-valve technology ensures substantially increased flow area of intake and exhaust; The central fuel injector enables more even atomization and more sufficient combustion. The valve oil seal is added using Yuchai's proprietary piston ring seal and valve oil seal technologies, making the consumption of lubricating oil above 50% lower than that of domestic products at the same power level.
It is equipped with digital intelligent local and remote monitoring instruments and integral cast iron fresh water cooling jacket exhaust pipe, ensuring lower cabin temperature and safer use.
