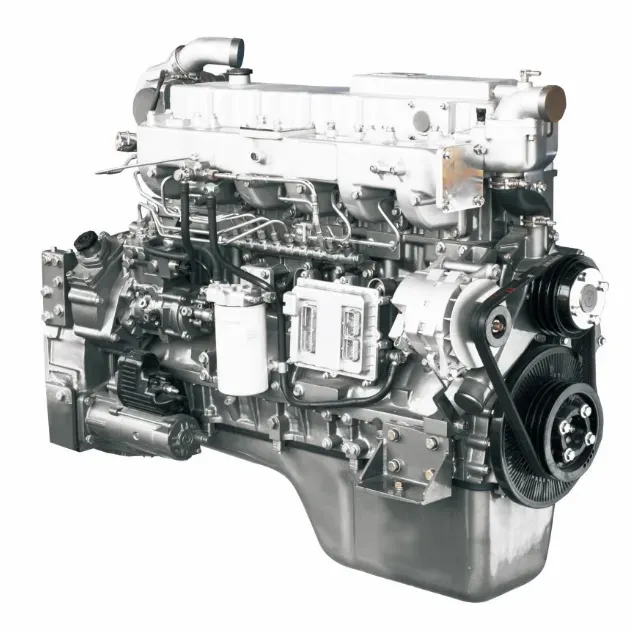

YC6MK engine is a medium- and heavy-duty diesel engine with a displacement of 10L. It is designed and developed in strict accordance with FEV's mechanical development programs, with reference to the advanced diesel engine concepts of AVL, Ricardo and other international professional organizations.
The 6MK engine platform has been applied to the development of vehicle engines, engines for engineering machinery, G-drive engines and marine engines. After years of test, development and application, the engine has had quite mature and perfect systems, and has subject to rigorous and extensive reliability tests and verifications.
High-strength water-cooled cylinder block, and integral four-valve cylinder head
Reliability development in strict accordance with FEV's mechanical development programs; passed the road adaptability test of about 3 million km (including high-temperature test, alpine-cold test and plateau test) and the rigorous reliability bench test of about 30,000 hours
Use of BOCSH high pressure common rail system, Kamax bolts, Federal-Mogul cylinder gaskets, ZYNP cylinder liners, and parts of other professional suppliers
Application of a four-valve structure and Yuchai's patented combustion technology, achieving a minimum fuel consumption of 190 g/kW·h
Supporting high-efficiency turbocharger, fine calibration based on market segment and applications, better economy and power performance
Use of an intelligent fuel-saving switch: The position switch is adjusted according to the real-time load, allowing the vehicle to operate in the economical range all the time, thus reducing the fuel consumption by at least 10%
Power coverage: 300 ps ~ 420 ps; torque coverage: 1,500 N·m ~ 2,000 N·m; high gradeability under heavy load condition
Maximum speed control, limp home, torque output control, fault indicator lamps, low oil pressure protection, and thermal protection and control
Application of pilot injection control, intelligent idle speed control and other electronic control technologies, effectively reducing engine vibration and noise
Application of the special in-cylinder brake system with a low braking speed jointly developed by Yuchai and JACOBS, achieving higher braking efficiency than similar products
|
Product Series |
Model Series |
Displacement (L) |
Bore × Stroke |
Number of Valves per Cylinder |
Emissions |
Power |
Torque |
Fuel System |
Exhaust Aftertreatment |
Dry Weight (kg) |
Oil Change Cycle |
B10 Service Life (10,000 km) |
|
YC6MK-30 |
YC6MK300-30 |
10.338 |
123X145 |
4 |
Euro III |
221/1900 |
1400/1100~1500 |
BOSCH high pressure common rail system |
No |
972 |
20,000 (standard) |
80 |
|
YC6MK340-30 |
250/1900 |
1550/1100~1500 |
||||||||||
|
YC6MK380-30 |
276/1900 |
1650/1100~1500 |
||||||||||
|
YC6MK400-30 |
294/1900 |
1800/1100~1500 |
||||||||||
|
YC6MK-33 |
YC6MK300-33 |
Euro II |
221/1900 |
1400/1100~1500 |
In-line mechanical pump |
No |
||||||
|
YC6MK340-33 |
250/1900 |
1550/1100~1500 |
||||||||||
|
YC6MK375-33 |
276/1900 |
1650/1100~1500 |
||||||||||
|
YC6MK400-33 |
294/1900 |
1800/1100~1500 |
||||||||||
|
YC6MK-50 |
YC6MK300-50 |
Euro Ⅴ |
221/1900 |
1400/1100~1500 |
BOSCH high pressure common rail system |
SCR |
||||||
|
YC6MK320-50 |
235/1900 |
1500/1100~1500 |
||||||||||
|
YC6MK350-50 |
258/1900 |
1600/1100~1500 |
||||||||||
|
YC6MK385-50 |
285/1900 |
1800/1100~1500 |
||||||||||
|
YC6MK400-50 |
294/1900 |
1900/1100~1500 |
||||||||||
|
YC6MK420-50 |
309/1900 |
2000/1100~1500 |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
