1.Multi-unit parallel connection
It supports multi-unit parallel connection technology, with up to 32 units in parallel, which can realize high-power power generation and adjustment of the number of units according to the load, improving the power grid safety and the power generation economy and reducing maintenance costs.
2.Low energy consumption
The advanced electronic control system is applied, realizing more accurate control of air and fuel ratio and the lowest fuel consumption in China.
3.Reliability and durability
Yuchai has 20 years of gas engine R&D and manufacturing technology and experience, with a large number of retaining products, mature technology, being reliability and durability.
|

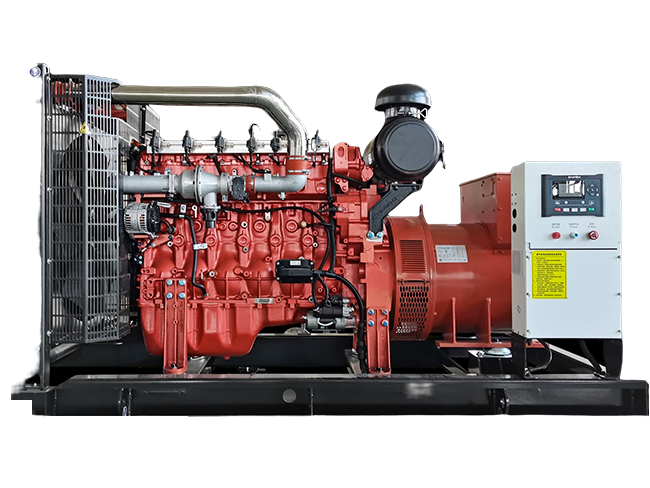

Parameters of genset |
|
|
Genset model |
YC6KG-200B5LC |
|
Rated power（kW） |
200 |
|
Rated voltage（V） |
400 |
|
Rated current(A) |
360.9 |
|
Frequency（Hz） |
50 |
|
Electric efficiency |
41% |
|
Length × width × height(mm) |
3600×1050×1540 |
|
Engine parameters |
|
|
Rated speed（r/min） |
1500 |
|
Displacement （L） |
12.939 |
|
Cylinder quantity - bore/stroke（mm） |
6-129/165 |
|
Engine oil consumption（g/kwh） |
≤0.3 |
|
NOx emission(mg/Nm3) |
≤500 |
|
Note: All the above data are tested under standard reference conditions and vary with configuration and technical development. |
|
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
