Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear

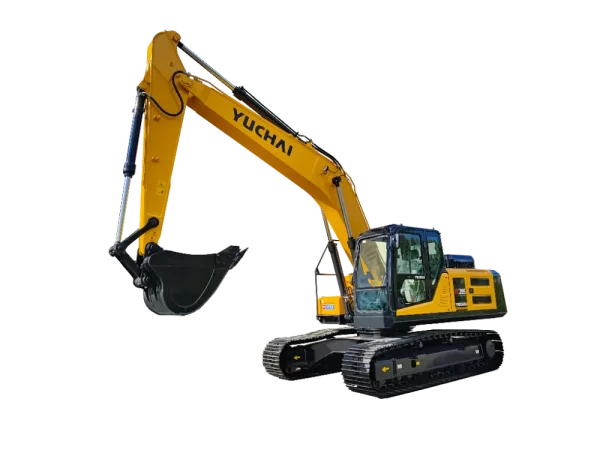

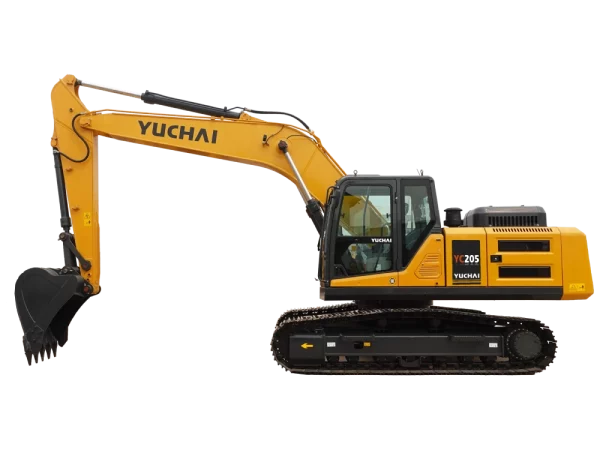

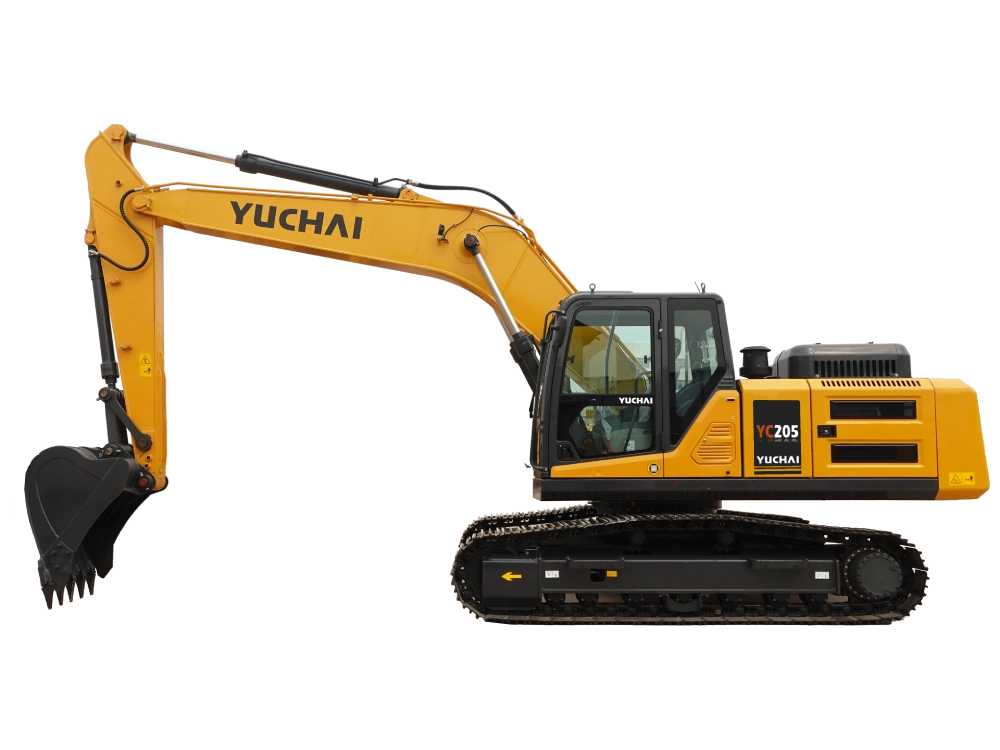

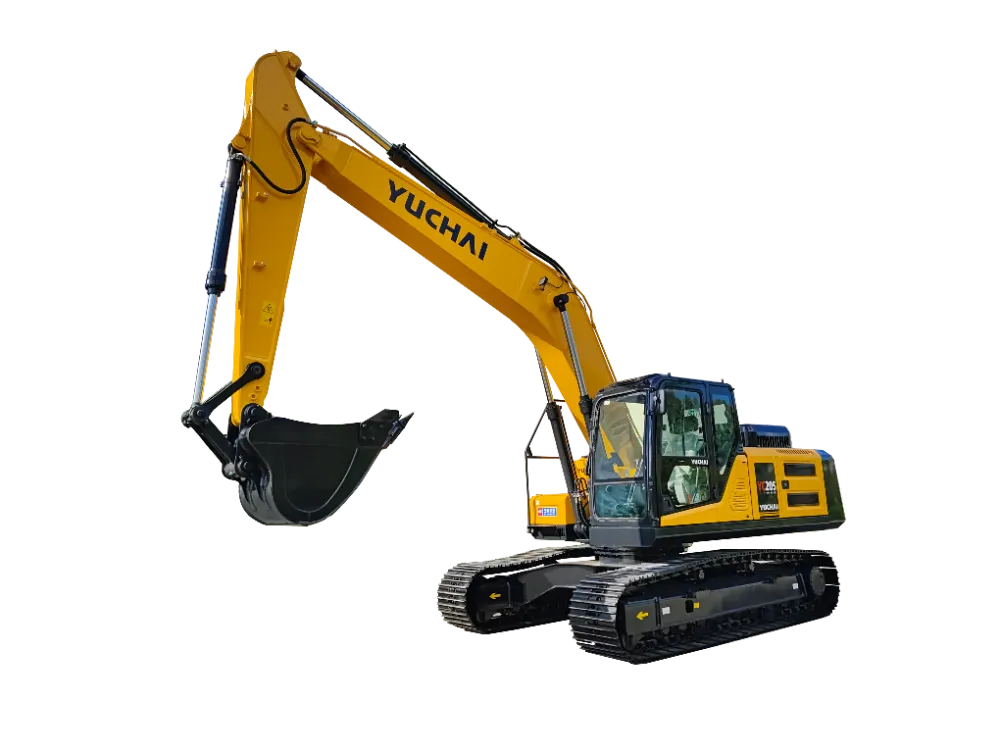

The YC205 is a cutting-edge excavator designed to tackle the toughest tasks with ease. Its robust build and advanced engineering ensure unmatched performance on any job site.
Equipped with a high-performance engine, the YC205 delivers incredible digging power and excellent fuel efficiency, saving you time and money. Its precision controls and responsive hydraulics make operating this machine a breeze, even for beginners.
With a spacious and comfortable cabin, operators can work for hours without fatigue. The ergonomic design and intuitive interface enhance productivity and safety.
From digging trenches to lifting heavy loads, the YC205 is the perfect partner for any construction project. Its versatility, reliability, and durability make it a top choice for construction professionals worldwide.
|
Excavator Model |
|
YC205 |
|
Basic parameter |
|
|
|
Machine weight |
kg |
21500 |
|
Bucket capacity |
m³ |
1 |
|
Width of bucket |
mm |
/ |
|
Performance parameter |
|
|
|
Engine model |
|
Yuchai |
|
Engine power |
kW/rpm |
129/2300 |
|
Max. Gradeability |
|
35° |
|
Max. digging force of arm |
kN |
106.3 |
|
Max. digging force of bucket |
kN |
152.6 |
|
Traveling speed |
km/h |
3.0/5.0 |
|
Max. hauling force |
kN |
275 |
|
Slewing speed of platform |
rpm |
10~13 |
|
Operating parameter |
|
|
|
Max. digging height |
mm |
10095 |
|
Max. digging depth |
mm |
6520 |
|
Max. digging radius |
mm |
9965 |
|
Max. digging radius on ground level |
mm |
9440 |
|
Max. dumping height |
mm |
7200 |
|
Min. slewing radius |
mm |
2965 |
|
Max. vertical digging depth |
mm |
5950 |
|
Max. dozer balde heigh |
mm |
|
|
Mzx. dozer blade depth |
mm |
|
|
Transportation dimension |
|
|
|
Overall length |
mm |
9680 |
|
Overall width |
mm |
2290 |
|
Overall height |
mm |
3520 |
|
Other Parameter |
|
|
|
Width of undercarriage |
mm |
2990 |
|
Length of track |
mm |
4160 |
|
Width of track |
mm |
600 |
|
Height between undercarriage and ground |
mm |
450 |
|
Height between platform and ground |
mm |
1050 |
|
Platform tail turning radius |
mm |
2870 |
|
Length to center of rollers |
mm |
3380 |
|
Fuel tank capacity |
L |
440 |
|
Hydraulic oil tank capacity |
L |
150 |
|
Track gauge |
|
2390 |
|
Working Pressure |
Mpa |
34.3 |
|
Ground Contact Pressure |
kPa |
|
|
Arm length |
mm |
5700 |
|
Boom length |
mm |
2925 |
|
Steering head angle |
|
|
|
Flow rate |
L/Min |
209*2 |
The YC205 is a cutting-edge excavator designed to tackle the toughest tasks with ease. Its robust build and advanced engineering ensure unmatched performance on any job site.
Equipped with a high-performance engine, the YC205 delivers incredible digging power and excellent fuel efficiency, saving you time and money. Its precision controls and responsive hydraulics make operating this machine a breeze, even for beginners.
With a spacious and comfortable cabin, operators can work for hours without fatigue. The ergonomic design and intuitive interface enhance productivity and safety.
From digging trenches to lifting heavy loads, the YC205 is the perfect partner for any construction project. Its versatility, reliability, and durability make it a top choice for construction professionals worldwide.
