Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear

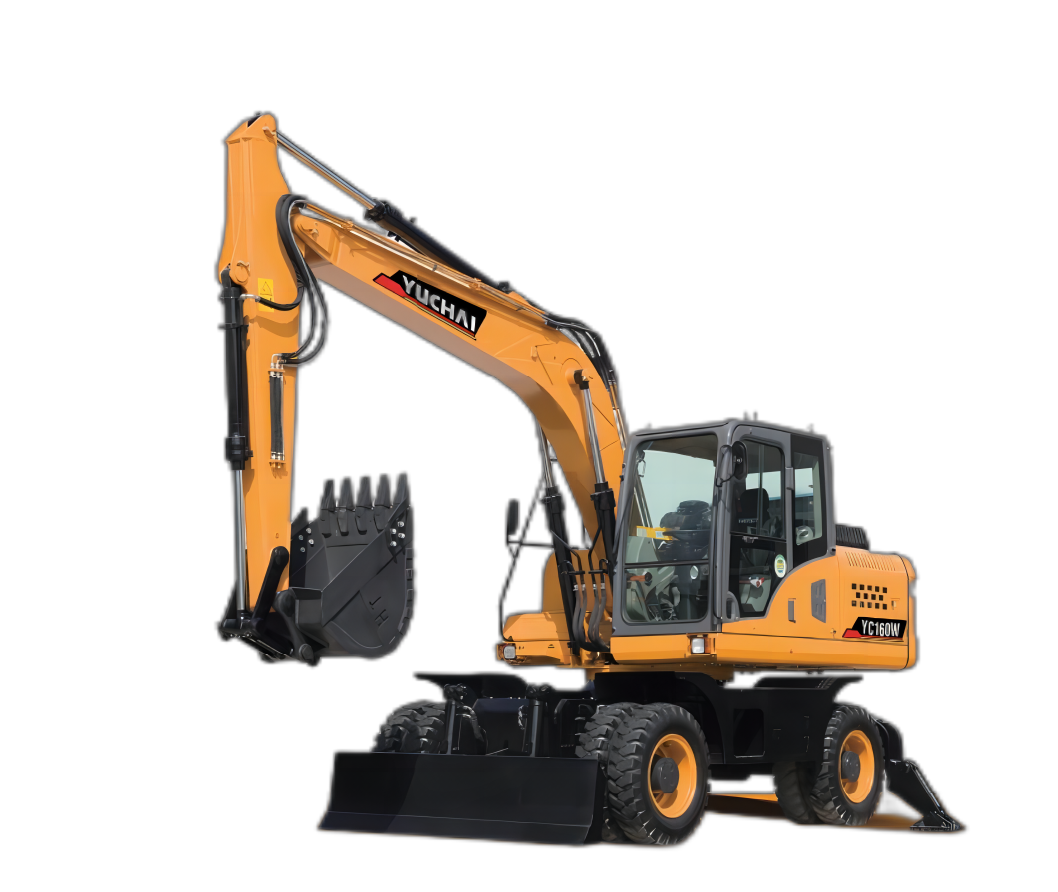

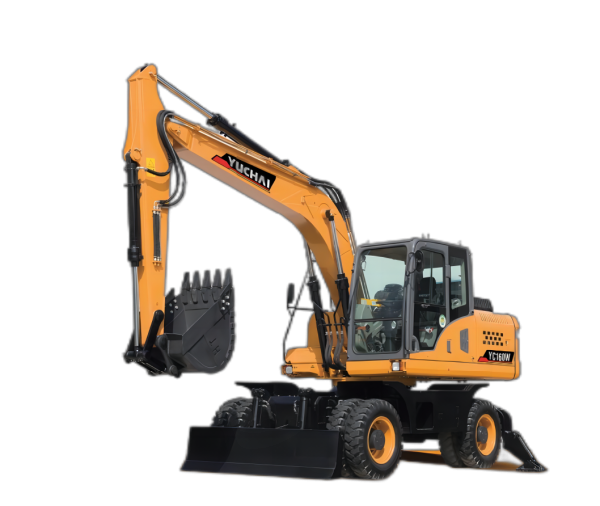

YC160W wheel excavator is a new generation of full hydraulic wheel excavator independently developed by YUCHAl heavy industry. ltadopts high-power and low fuel consumption national three standard engine to ensure the strong power and power reserve of the wholemachine. The accurate matching of high-eficiency hydraulic system and bridge box ensures the random switching of working state andwalking state. The hydraulic system of the whole machine is matched with imported hydraulic components, which has thecharacteristics of "high reliability, high reliability and high relability’ At the same time, it can provide a variety of specialconfigurations to meet the needs of different countries and customers.
|
Weight |
|
|
|
Machine weight |
kg |
14000 |
|
Engine |
|
|
|
Engine model |
|
YC4D125-T310QSB39-C125-30QSB |
|
power |
|
116kw/93kw/92kw 2200rpm/min |
|
Describe |
Unit |
Size |
|
Shipping length |
mm |
7750 |
|
Total height during transportation |
mm |
3250 |
|
Overall width |
mm |
2550 |
|
Tail turning radius |
mm |
2340 |
|
Wheelbase |
mm |
2645 |
|
Track width |
mm |
1880 |
|
Ground clearance of counterweight |
mm |
1250 |
|
Minimum ground clearance |
mm |
250 |
|
Ground clearance of transmission |
mm |
340 |
|
Lifting height of bulldozer |
mm |
380 |
|
Width of bulldozer plate |
mm |
2500 |
|
Support height of bulldozer |
mm |
60 |
|
Describe |
Unit |
Numerical value |
|
Maximum excavation radius |
mm |
8000 |
|
Maximum excavation heigh |
mm |
8720 |
|
Maximum excavation depth |
mm |
4865 |
|
Maximum unloading height |
mm |
6220 |
|
Bucket digging force |
kN |
85 |
|
Digging force of stick |
kN |
53 |
|
Hydraulic system pressure |
Mpa |
32 |
|
Bucket capacity |
m³ |
0.6 |
|
Walking speed |
km/h |
30 |
|
Hydraulic system flow |
L/min |
2*130 |
|
Slewing speed |
r/min |
13-14 |
YC160W wheel excavator is a new generation of full hydraulic wheel excavator independently developed by YUCHAl heavy industry. ltadopts high-power and low fuel consumption national three standard engine to ensure the strong power and power reserve of the wholemachine. The accurate matching of high-eficiency hydraulic system and bridge box ensures the random switching of working state andwalking state. The hydraulic system of the whole machine is matched with imported hydraulic components, which has thecharacteristics of "high reliability, high reliability and high relability’ At the same time, it can provide a variety of specialconfigurations to meet the needs of different countries and customers.
