Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear

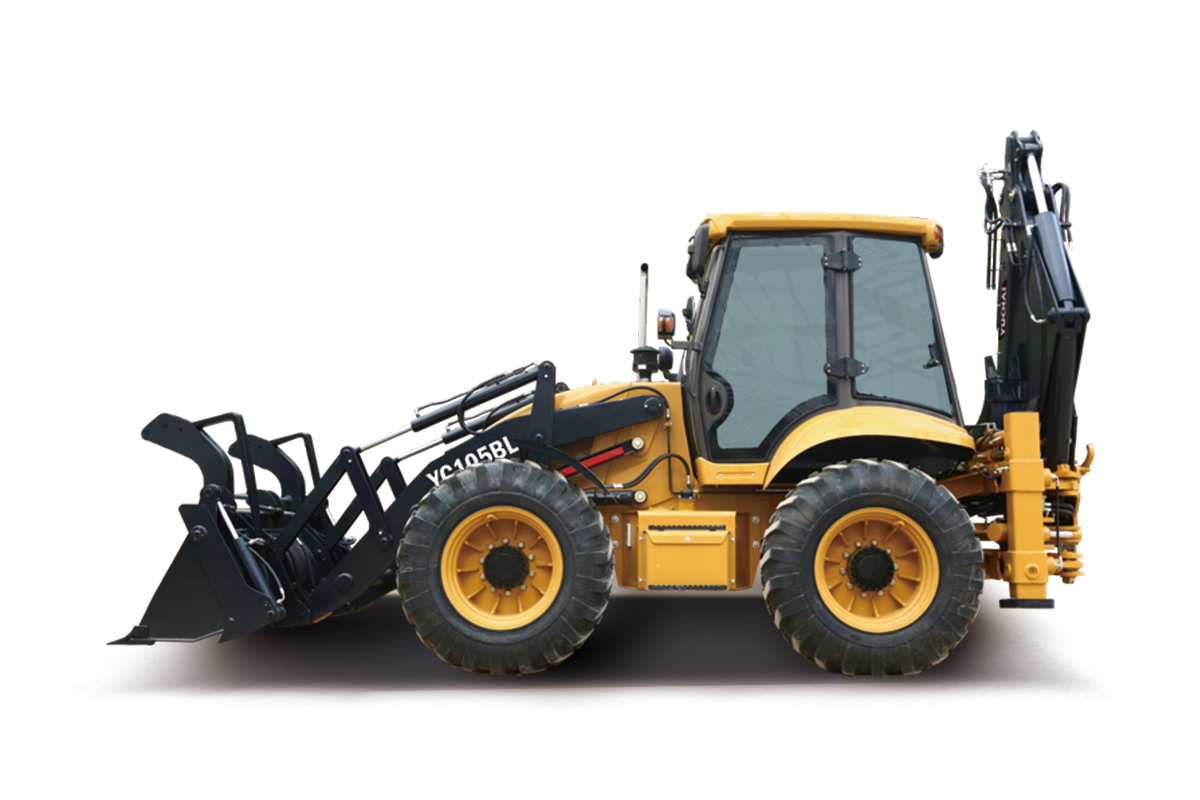

The integral frame,provides excellent stabilityand is more suitable for excavation work.
The excavating working device is side shifttype,
high strength and good structural stability;
the loading end working device adopts eight-barlinkage mechanism.
|
Manufacturer/Model |
Parameters |
|
|
Basic Parameters |
Operating weight |
10500KG |
|
|
Rated load |
2500KG |
|
|
Bucket capacity |
1.2m³ |
|
|
Max. hauling force |
86KN |
|
|
Max. digging force |
47KN |
|
|
Max. gradeability |
26° |
|
|
Max. dumping height |
3050mm |
|
|
Dimension |
6450*2530*3120mm |
|
Engine |
Model |
Yuchai |
|
|
Rated power |
75KW |
|
|
Rpm |
2200r/min |
|
Transmission System |
Torque converter model |
YJ320 |
|
|
Gearbox |
Hydraulic shifting through mechanical control |
|
|
Gears |
F4/R4 |
|
|
Max. speed |
36km/h |
|
|
Drive axle |
Carraro |
|
|
Tire specification |
16.9-28 |
|
Steering System |
Steering pressure |
14Mpa |
|
|
Min. turning radius |
6950mm |
|
Hydraulic System |
Operating pressure |
20Mpa |
|
|
Digging pressure |
20Mpa |
|
|
Control method |
Hydraulic pilot |
|
Excavation device |
Bucket capacity |
0.3m³ |
|
|
Max. dumping height |
4050mm |
|
|
Max. digging depth |
3820mm |
|
|
Max. digging radius |
6528mm |
|
|
Slewing angle |
180° |
|
|
Digging force of bucket |
50KN |
|
|
Digging force of arm |
31KN |
The integral frame,provides excellent stabilityand is more suitable for excavation work.
The excavating working device is side shifttype,
high strength and good structural stability;
the loading end working device adopts eight-barlinkage mechanism.
