Products
The product has reached the world's advanced level in terms of fast start-up capability, load adaptability, and electrical parameter indicators.

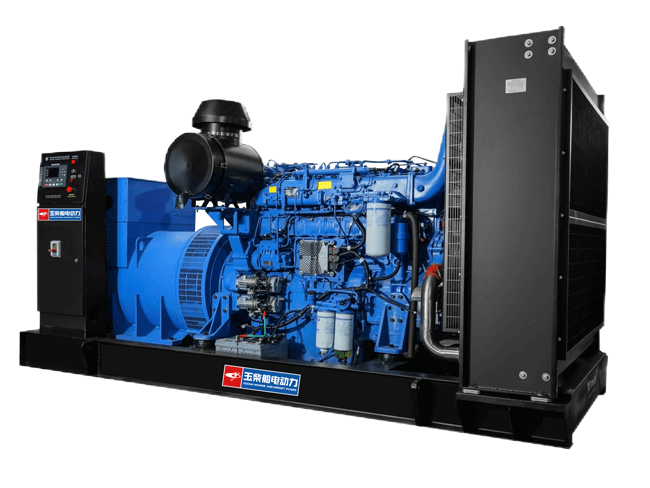

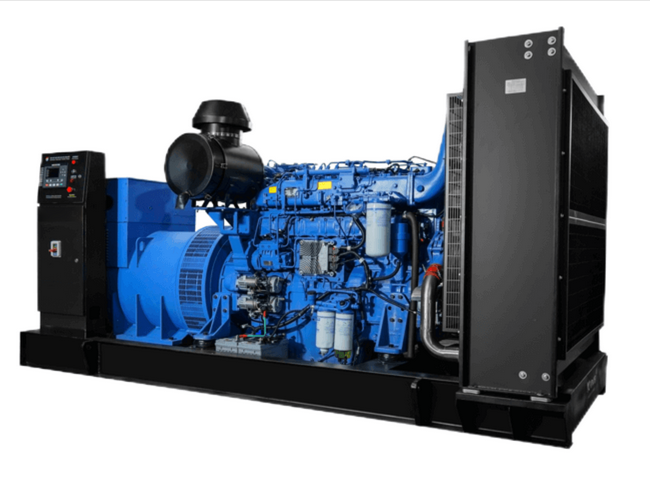

| National III Power Genset | ||||||
| Power Range | Rated Power(kW) | Standby Power(kW) | Engine Model | Displacement（L） | Net Weight（kg） | Length × Width × Height（mm） |
| Above 2000 kW | 2200 | 2420 | YC16VC3600-D31 | 105.56 | 24700 | 7600×3000×3150 |
| 2400 | 2640 | YC16VC4000-D31 | 105.56 | 26400 | 8000×3000×3150 | |
| 2500 | 2750 | YC16VC4200-D30 | 105.56 | 26400 | 8200×3000×3150 | |
| 2600 | 2860 | YC16VC4200-D30 | 105.56 | 25900 | 8200×3000×3150 | |
| 2700 | 2970 | YC16VC4500-D30 | 105.56 | 25200 | 8300×3100×3650 | |
| 2800 | 3080 | YC16VC4500-D30 | 105.56 | 25200 | 8300×3100×3650 | |
| 3000 | 3300 | YC16VC4900-D30 | 105.56 | 27600 | 8400×3100×3650 | |
| MTU Power Genset | ||||||
| Above 2000 kW | 2000 | 2200 | 20V4000G23F | 95.4 | 17890 | 7650×2990×2700 |
| 2200 | 2420 | 20V4000G63F | 95.4 | 22140 | 7650×2990×2700 | |
| 2400 | 2640 | 20V4000G63LF | 95.4 | 21600 | 7800×2990×2800 | |
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
The product has reached the world's advanced level in terms of fast start-up capability, load adaptability, and electrical parameter indicators.
