Machine weight：4950 kg
Bucket capacity：0.5m³
Rated power：32/3140+4×10/3140kW/rpm
Large displacement, high gradeability and high efficiency
Bosch high pressure common rail (HPCR) fuel injection system with the injection pressure up to 1,600 bar, achieving multiple injections and accurate control
High-strength alloy cast iron cylinder head
General engine block + independent crankcase
Long B10 service life design, which can be more than 500,000 km
Reduction soft meshing starter, ensuring smooth start
A framed engine body structure, ensuring good rigidity and small vibration
Damping gear
1.Global first wheel side motor driving technology
2.Global first wheel side AUTO-HOLD technology
3.Integrated chassis
4.Power capacity increased by 25%
5.Improved job stability by 15%
6.Battery life increased by 40%

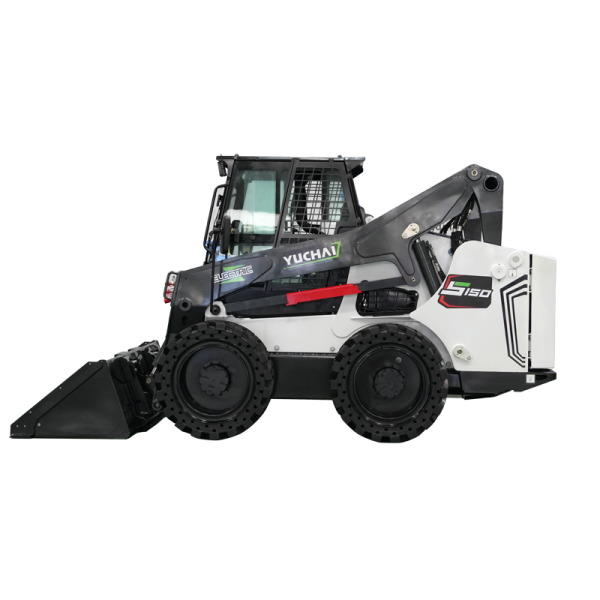

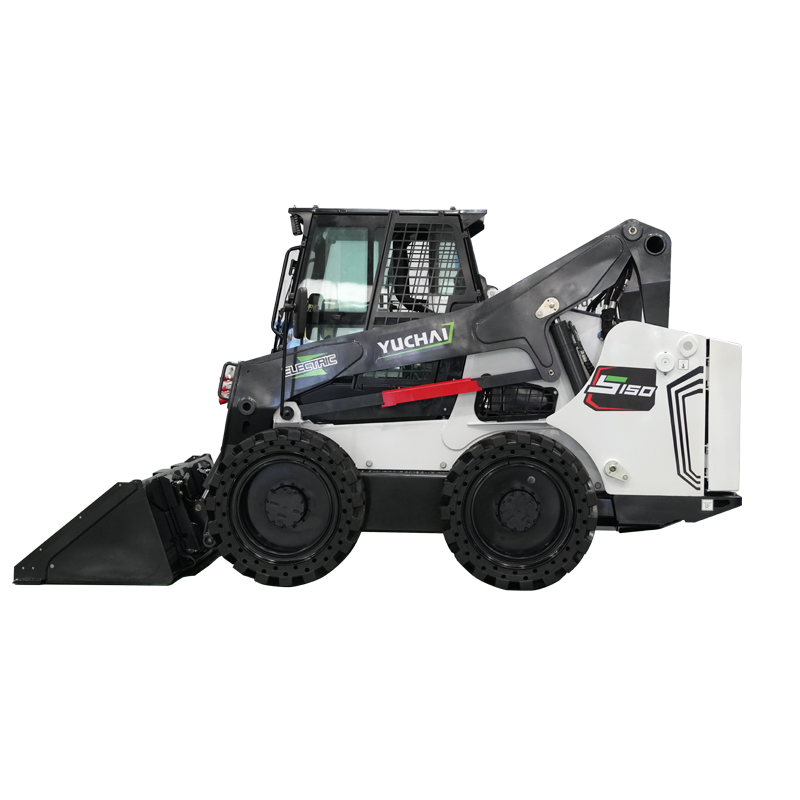

The Yuchai S150 electric skid steer loader adopts the global first wheel side motor driving，wheel side AUTO-HOLD technology and integrated chassis.It is together with features compact size,good trafficability, large operating range and comfortable driving experience, intelligent electronic control, green and environmentally friendly, low-failure rate and low-use cost.S150 supports fast charging function. By 1-hour fast charging, it can work for 8-9 hours. It can be used with a variety of attachments and widely used suitable for farms, forest farms, urban infrastructure, roads or construction sites, factories, and workshops, etc.
|
Performance Parameters |
||
|
Basic parameter |
|
|
|
Machine Weight |
kg |
4950 |
|
Bucket capacity |
m³ |
0.5 |
|
Bucket width |
mm |
1880 |
|
Technical Specification |
|
|
|
Battery |
|
Lithium lron Phosphate |
|
Rated power |
kW/rpm |
32/3140+4×10/3140 |
|
Battery capacity |
N.m/N.m |
105/140 |
|
Rated Operating Load |
kg |
1620 |
|
Tipping Load |
kg |
3100 |
|
System working pressure |
MPa |
23（0~+0.5） |
|
Flow Rate |
L/min |
87.1+51.1 |
|
Increase maximum digging force |
kN |
25 |
|
Tipping |
kN |
24.5 |
|
Max. travel speed(low gear ) |
km/h |
10/20 km/h |
|
Fast charge |
|
1 Hour Charging from 30% to 80% |
|
Endurance* |
h |
8-9 |
|
Drive System |
|
|
|
4-Wheel independent direct driving by electric motor |
|
|
|
Operating parameter |
|
|
|
A Overall operating height |
mm |
4280 |
|
B Height to top of cab |
mm |
2065 |
|
C Dumping angle at maximum height |
° |
21.5 |
|
D Ground clearance |
mm |
207 |
|
E Wheelbase |
mm |
1227 |
|
F Overall length without standard bucket |
mm |
3066 |
|
G Overall length with standard bucket |
mm |
3830 |
|
H Maximum angle of flat ground |
° |
31 |
|
I Unloading height |
mm |
2610 |
|
J Height to bucket hinge pin |
mm |
3335 |
|
K Loading distance at Max. unloading height |
mm |
845 |
|
L Dumping angle at maximum height |
° |
41 |
|
M Rollback of bucket at full height |
° |
98 |
|
N Bucket width |
mm |
1880 |
|
O Radius of gyration |
mm |
2179 |
|
P Tread |
mm |
1507 |
|
Q Machine width |
mm |
1832 |
1.Global first wheel side motor driving technology
2.Global first wheel side AUTO-HOLD technology
3.Integrated chassis
4.Power capacity increased by 25%
5.Improved job stability by 15%
6.Battery life increased by 40%
The Yuchai S150 electric skid steer loader adopts the global first wheel side motor driving，wheel side AUTO-HOLD technology and integrated chassis.It is together with features compact size,good trafficability, large operating range and comfortable driving experience, intelligent electronic control, green and environmentally friendly, low-failure rate and low-use cost.S150 supports fast charging function. By 1-hour fast charging, it can work for 8-9 hours. It can be used with a variety of attachments and widely used suitable for farms, forest farms, urban infrastructure, roads or construction sites, factories, and workshops, etc.
